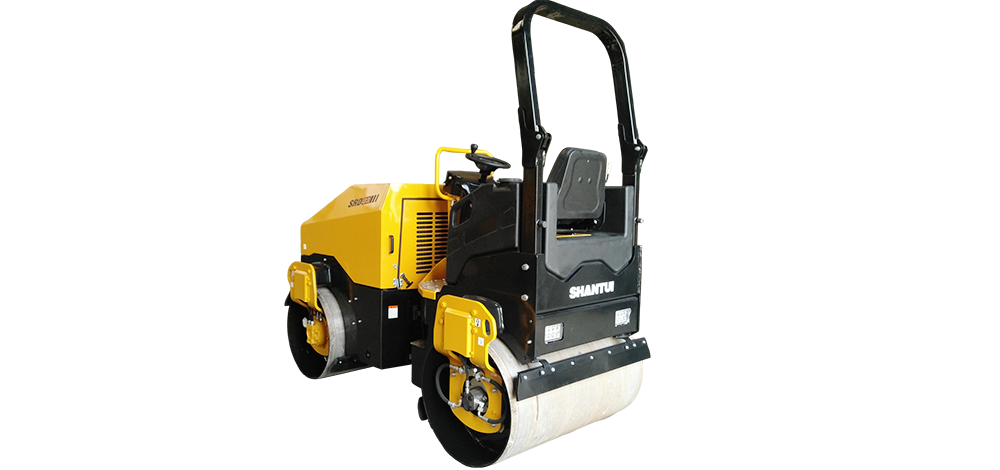

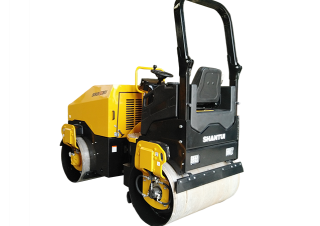

SRD03 Shantui SRD03 Specifications & Technical Data (2025—2026)

Weight: 2.9t – Transport length: 2.495m – Transport width: 1.31m – Transport height: 2.44m – Travel speed: 12km/h – Frequency: 60Hz

Rollers Tandem Vibration Rollers Shantui SRD03

Technical specs - SRD03 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.9 t
Transport length
2.495 m
Transport width
1.31 m
Transport height
2.44 m
Travel speed
12 km/h
Frequency
60 Hz
Roller width
1.2 m
Rollers Ø
0.7 m
Centrifugal force
30 kN
Engine manuf.
Yanmar
Engine type
3TNV88
Engine power
26.9 kW
No. of cylinders
3
Emission level
Stage IIIA

More technical details, like: vibration, drive, steering, turning radius outside, statical line load, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Oscillation
No
Compression control
No
Aircondition
No
