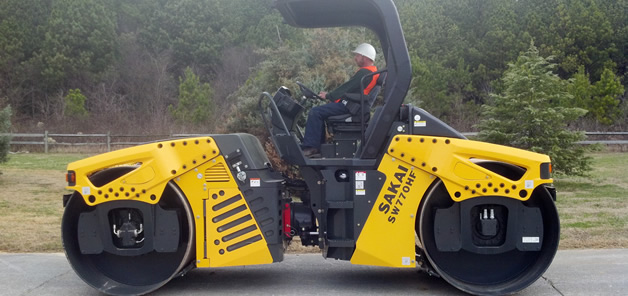

SW770HF Sakai SW770HF Specifications & Technical Data (2017—2026)
Technical specs - SW770HF Sakai
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 10.8 t
- Vibration
- d
- Drive
- A
- Travel speed
- 14 km/h
- Frequency
- 67 Hz
- Roller width
- 1.7 m
- Rollers Ø
- 1.3 m
- Turning radius outside
- 6.3 m
- Centrifugal force
- 131 kN
- Model series
- SW770
- Engine manuf.
- Isuzu
- Engine type
- 4JJ1XDIA
- Engine power
- 91 kW
- Displacement
- 2.999 l
- Revolutions at max torque
- 2200 rpm
- No. of cylinders
- 4
- Emission level
- Tier 3
More technical details, like: transport length, transport width, transport height, steering, statical line load, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
