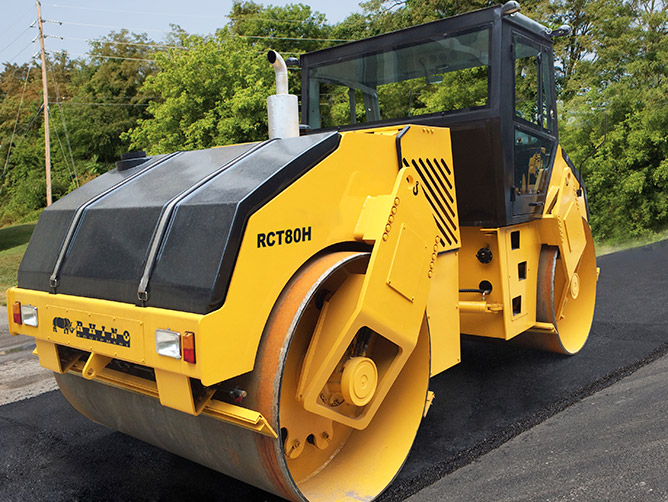

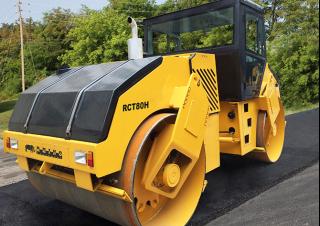

RCT80H RHINO RCT80H Specifications & Technical Data (2017—2026)

Weight: 8t – Transport length: 5.08m – Transport width: 2.16m – Transport height: 2.85m – Vibration: d – Travel speed: 12km/h

Rollers Tandem Vibration Rollers RHINO RCT80H

Technical specs - RCT80H RHINO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8 t
Transport length
5.08 m
Transport width
2.16 m
Transport height
2.85 m
Vibration
d
Travel speed
12 km/h
Frequency
50 Hz
Roller width
1.87 m
Rollers Ø
1.15 m
Turning radius outside
7 m
Model series
RCT

More technical details, like: drive, steering, statical line load, centrifugal force, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: drive, steering, statical line load, centrifugal force, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

RHINO RCT80H FAQ

When was the RHINO RCT80H manufactured?

The RHINO RCT80H was first produced in 2017.

How much does the RHINO RCT80H weigh?

The RHINO RCT80H weighs 8 tons.

What are the transport dimensions of the RHINO RCT80H tandem vibration roller?

The RHINO RCT80H has a transport length of 5.08 meters, a transport width of 2.16 meters, and a transport height of 2.85 meters.

What is the travel speed of the RHINO RCT80H tandem vibration roller?

The RHINO RCT80H has a travel speed of 12 km/h.

What is the turning radius of the RHINO RCT80H tandem vibration roller?

The RHINO RCT80H has an outside turning radius of 7 meters.

What type of vibration system and frequency does the RHINO RCT80H tandem vibration roller have?

The RHINO RCT80H features a double vibration system operating at a frequency of 50 Hz.

What are the roller specifications of the RHINO RCT80H tandem vibration roller?

The RHINO RCT80H has rollers that are 1.87 meters wide with a diameter of 1.15 meters.
