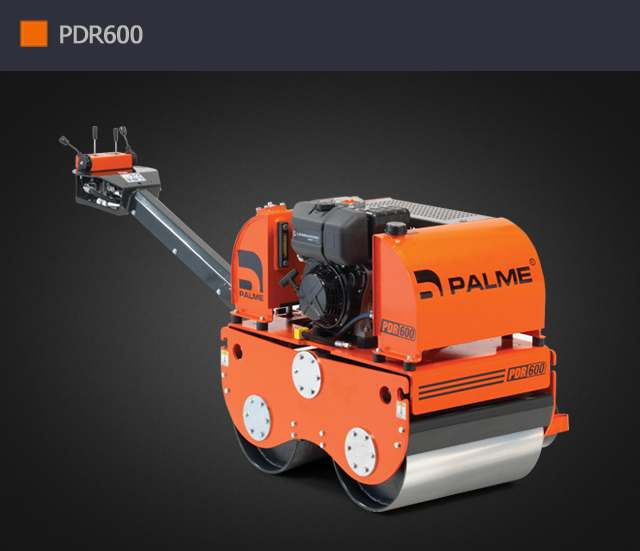

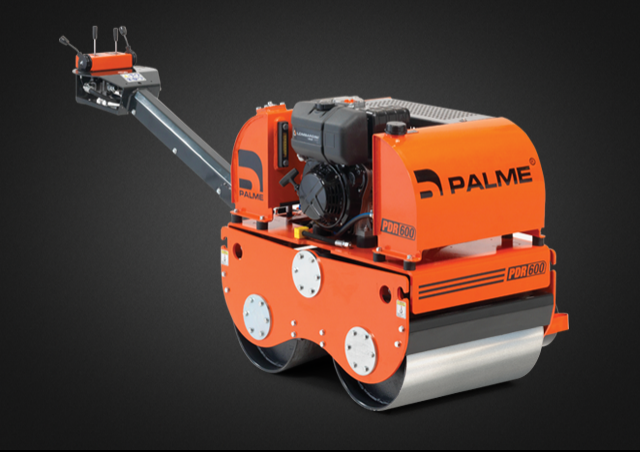

PDR600 Palme PDR600 Specifications & Technical Data (2018—2026)

Weight: 0.58t – Transport length: 1.22m – Transport width: 0.83m – Transport height: 1.87m – Vibration: d – Drive: A

Rollers Tandem Vibration Rollers Palme PDR600

Technical specs - PDR600 Palme

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
0.58 t
Transport length
1.22 m
Transport width
0.83 m
Transport height
1.87 m
Vibration
d
Drive
A
Travel speed
2.6 km/h
Roller width
0.6 m
Centrifugal force
15 kN

More technical details, like: steering, frequency, rollers Ø, turning radius outside, statical line load, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: steering, frequency, rollers Ø, turning radius outside, statical line load, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
Yes
Oscillation
No
Compression control
No
Aircondition
No

Palme PDR600 FAQ

When was the Palme PDR600 manufactured?

The Palme PDR600 was first produced in 2018.

How much does the Palme PDR600 weigh?

The Palme PDR600 weighs 0.58 tons.

What are the transport dimensions of the Palme PDR600 tandem vibration roller?

The Palme PDR600 has a transport length of 1.22 meters, a transport width of 0.83 meters, and a transport height of 1.87 meters.

What is the travel speed of the Palme PDR600 tandem vibration roller?

The Palme PDR600 tandem vibration roller has a travel speed of 2.6 km/h.

What type of drive does the Palme PDR600 have?

The Palme PDR600 has an all-wheel drive.

What are the compaction capabilities of the Palme PDR600 tandem vibration roller?

The Palme PDR600 features a double vibration system and generates a centrifugal force of 15 kN.

What is the roller width of the Palme PDR600 tandem vibration roller?

The Palme PDR600 has a roller width of 0.6 meters.

How much is a Palme PDR600 Tandem Vibration Roller (2018u20132025) worth?

The residual value of the Palme PDR600 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
