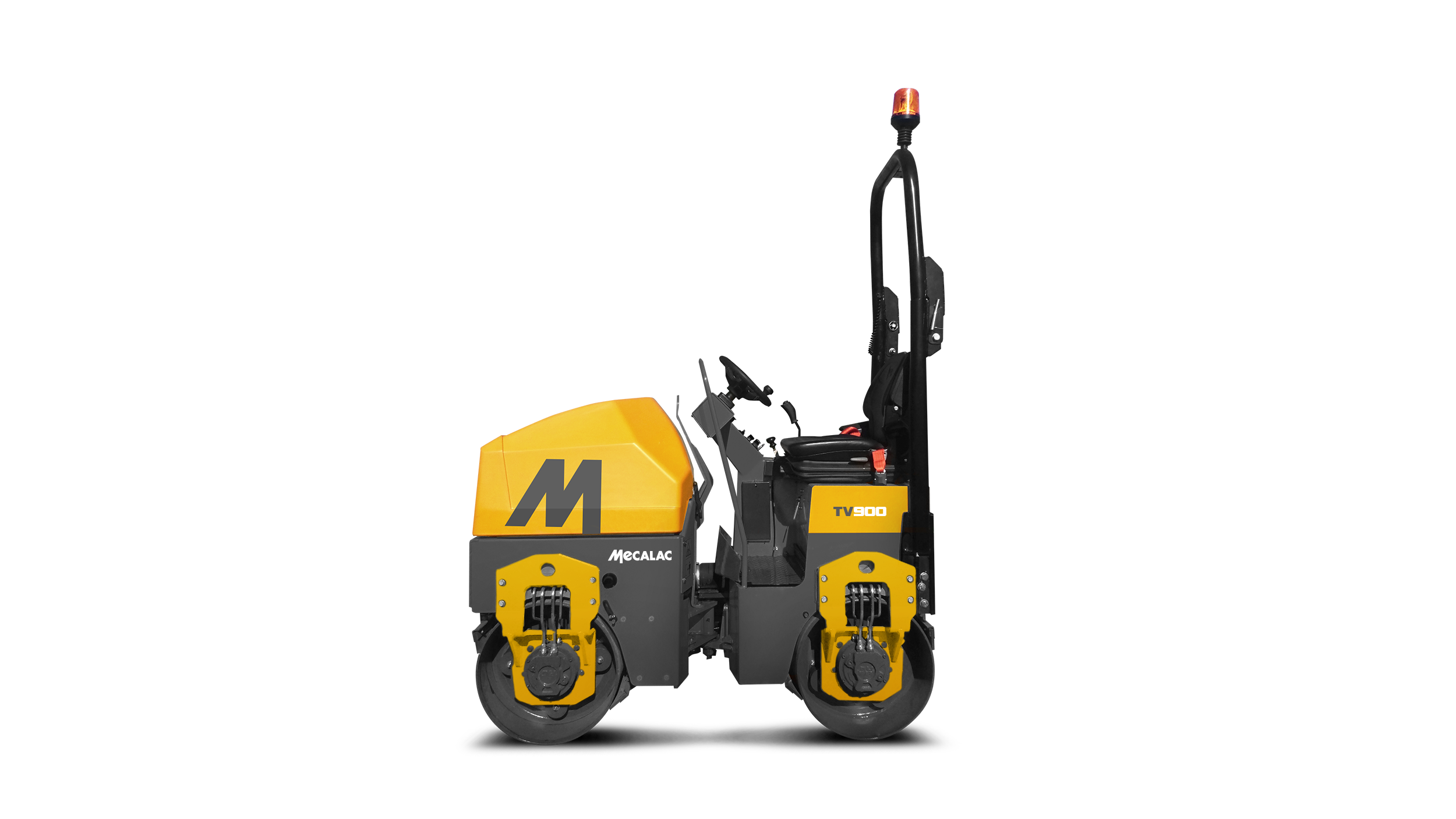

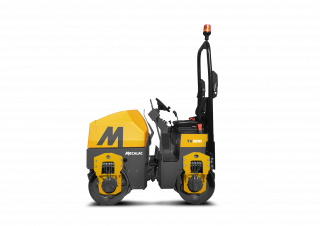

TV900 Mecalac TV900 Specifications & Technical Data (2017—2026)
Technical specs - TV900 Mecalac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.57 t
- Transport length
- 1.86 m
- Transport width
- 0.97 m
- Transport height
- 1.53 m
- Vibration
- d
- Steering
- KL
- Travel speed
- 8 km/h
- Frequency
- 52 Hz
- Roller width
- 0.9 m
- Rollers Ø
- 0.55 m
- Turning radius outside
- 1.9 m
- Statical line load
- 8.7 kg/cm
- Model series
- TV
- Engine manuf.
- Kubota
- Engine type
- D905
- Engine power
- 16.5 kW
- Displacement
- 0.898 l
- Revolutions at max torque
- 3000 rpm
More technical details, like: drive, centrifugal force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Mecalac TV900 FAQ
How much does the Mecalac TV900 weigh?
What are the transport dimensions of the Mecalac TV900 tandem vibration roller?
What is the travel speed of the Mecalac TV900 tandem vibration roller?
What are the maneuverability specifications of the Mecalac TV900 tandem vibration roller?
What are the compaction capabilities of the Mecalac TV900 tandem vibration roller?
What are the roller specifications of the Mecalac TV900 tandem vibration roller?
