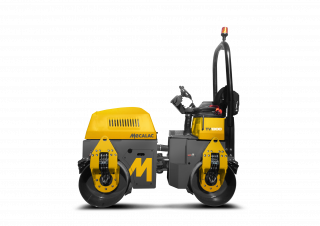

Mecalac TV1300 Specifications & Technical Data (2017-2020)

Technical specs - TV1300 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.43 t

Transport length: 2.37 m

Transport width: 1.37 m

Transport height: 1.94 m

Vibration: d

Steering: KL

Travel speed: 10 km/h

Frequency: 56 Hz

Roller width: 1.3 m

Rollers Ø: 0.7 m

Turning radius outside: 2.48 m

Statical line load: 13.21 kg/cm

Model series: TV

Engine manuf.: Kubota

Engine type: D2203M

Engine power: 32.4 kW

Displacement: 2.197 l

Revolutions at max torque: 2800 rpm

More technical details, like: drive, centrifugal force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: No
Compression control: No
Aircondition: No

Download datasheets (PDF)

Mecalac TV1300 FAQ

When was the Mecalac TV1300 manufactured?

The Mecalac TV1300 was manufactured from 2017 to 2020.

How much does the Mecalac TV1300 weigh?

The Mecalac TV1300 weighs 3.43 tons.

What are the transport dimensions of the Mecalac TV1300 tandem vibration roller?

The Mecalac TV1300 has a transport length of 2.37 meters, a transport width of 1.37 meters, and a transport height of 1.94 meters.

What is the travel speed of the Mecalac TV1300 tandem vibration roller?

The Mecalac TV1300 has a travel speed of 10 km/h.

What are the maneuverability specifications of the Mecalac TV1300 tandem vibration roller?

The Mecalac TV1300 features articulated-frame steering and has an outside turning radius of 2.48 meters.

What are the compaction capabilities of the Mecalac TV1300 tandem vibration roller?

The Mecalac TV1300 features a double vibration system operating at a frequency of 56 Hz and has a statical line load of 13.21 kg/cm.

What are the roller specifications of the Mecalac TV1300 tandem vibration roller?

The Mecalac TV1300 has rollers that are 1.3 meters wide with a diameter of 0.7 meters.

How much is a Mecalac TV1300 Tandem Vibration Roller (2017u20132020) worth?

The residual value of the Mecalac TV1300 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
