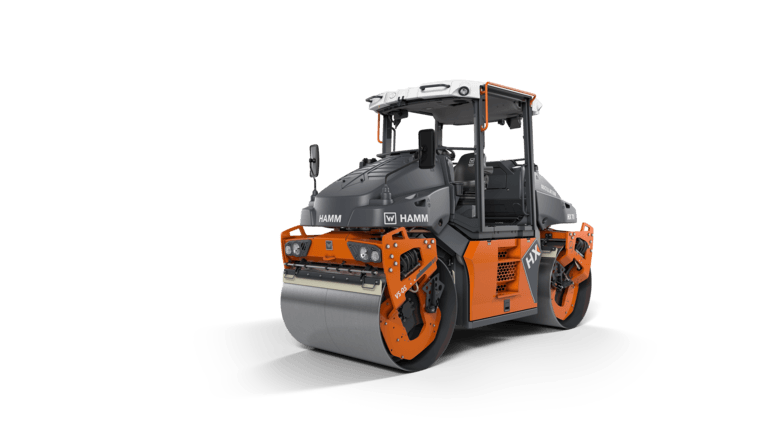

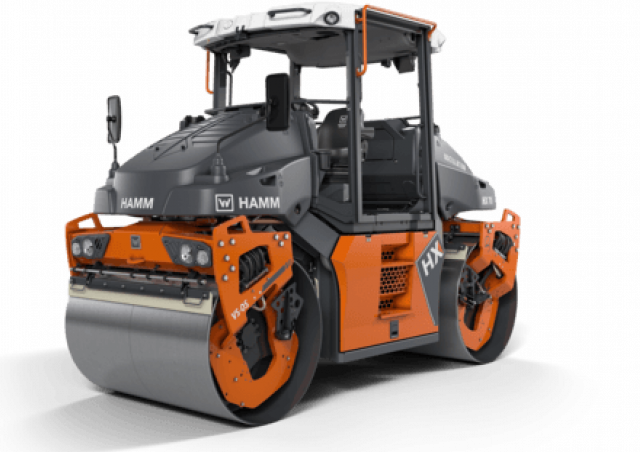

HX 70i VS-OS Hamm HX 70i VS-OS Specifications & Technical Data (2022—2026)
Visit Hamm live at
Technical specs - HX 70i VS-OS Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 8.315 t
- Transport length
- 4.14 m
- Transport width
- 1.68 m
- Transport height
- 2.17 m
- Travel speed
- 11 km/h
- Frequency
- 50 Hz
- Roller width
- 1.5 m
- Rollers Ø
- 1.14 m
- Statical line load
- 29 kg/cm
- Centrifugal force
- 68 kN
- Model series
- HX
- Engine manuf.
- Kubota
- Engine type
- V3307-CR-TE5B
- Engine power
- 55.4 kW
- Displacement
- 2.9 l
- Revolutions at max torque
- 2200 rpm
- No. of cylinders
- 4
- Emission level
- EU V / EPA Tier 4
More technical details, like: vibration, drive, steering, turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Oscillation
-
Yes
- Compression control
-
No
- Aircondition
-
No
