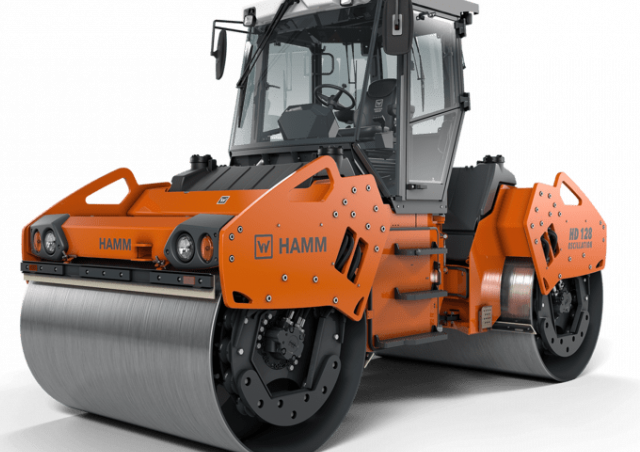

    Hamm HD O128V Specifications & Technical Data (2020-2021)

    Rate this machine now!

    Weight: 12.25t – Transport length: 5.01m – Transport width: 2.09m – Transport height: 3.22m – Vibration: e – Drive: E

    Technical specs - HD O128V Hamm

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Weight 12.25 t
    Transport length 5.01 m
    Transport width 2.09 m
    Transport height 3.22 m
    Vibration e
    Drive E
    Steering KL
    Travel speed 12 km/h
    Frequency 42/50 Hz
    Roller width 1.98 m
    Rollers Ø 1.4 m
    Statical line load 31.2/30.7 kg/cm
    Engine manuf. Deutz
    Engine type TCD 2012 L04 2V
    Engine power 100 kW
    Engine power 136 HP
    No. of cylinders 4
    Emission level MEP III
    Turning radius outside ###
    Centrifugal force ###
    Dimension lxwxh ###
    Displacement ###
    Revolutions at max torque ###
    Max. torque ###
    Cylinder bore x stroke ###
    Weight ###

    Basic model with ROPS cabin

    HD O128V Hamm - Special equipment

    • Diesel particulate filter
    • Oscillation
    • Compression control
    • Aircondition

    Download data sheets - Hamm HD O128V
