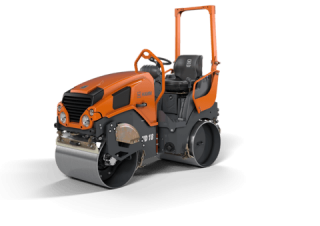

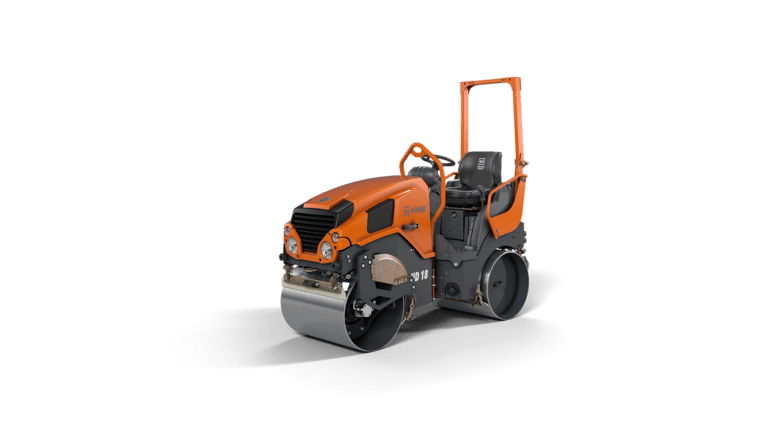

HD 18 VV Hamm HD 18 VV Specifications & Technical Data (2022—2026)
Visit Hamm live at
Technical specs - HD 18 VV Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.59 t
- Transport length
- 2.295 m
- Transport width
- 0.938 m
- Transport height
- 1.58 m
- Steering
- KL
- Travel speed
- 11 km/h
- Frequency
- 61 Hz
- Roller width
- 0.8 m
- Rollers Ø
- 0.62 m
- Statical line load
- 10.3 kg/cm
- Centrifugal force
- 17 kN
- Model series
- HD
- Engine manuf.
- Kubota
- Engine type
- D1105
- Engine power
- 16.1 kW
- No. of cylinders
- 3
- Emission level
- EU V / EPA Tier 4 / MEE III
More technical details, like: vibration, drive, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
Yes
- Compression control
-
No
- Aircondition
-
No
