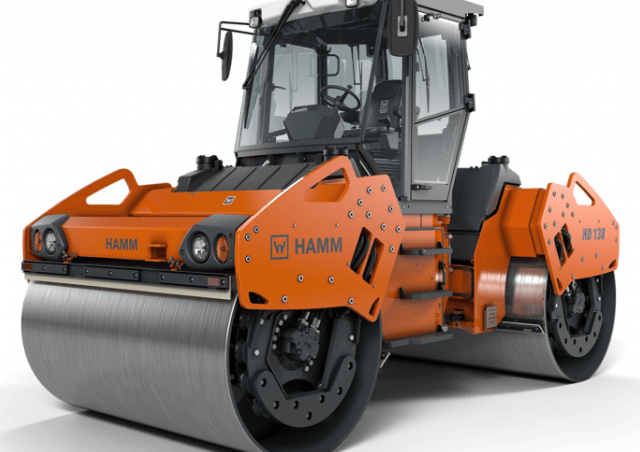

Hamm HD 138 Specifications & Technical Data (2020-2026)

Technical specs - HD 138 Hamm

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 13.82 t

Transport length: 5.01 m

Transport width: 2.25 m

Transport height: 3.22 m

Vibration: d

Drive: E

Steering: KL

Frequency: 50 Hz

Roller width: 2.14 m

Rollers Ø: 1.4 m

Statical line load: 32.5 kg/cm

Centrifugal force: 186 kN

Model series: HD

Engine manuf.: Deutz

Engine type: TCD 2012 L04 2V

Engine power: 100 kW

No. of cylinders: 4

Emission level: MEP III

More technical details, like: travel speed, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: Yes
Compression control: No
Aircondition: No

Download datasheets (PDF)

Hamm HD 138 FAQ

When was the Hamm HD 138 manufactured?

The Hamm HD 138 was first produced in 2020.

How much does the Hamm HD 138 weigh?

The Hamm HD 138 weighs 13.82 tons.

What are the transport dimensions of the Hamm HD 138 tandem vibration roller?

The Hamm HD 138 has a transport length of 5.01 meters, a transport width of 2.25 meters, and a transport height of 3.22 meters.

What type of drive does the undercarriage of the Hamm HD 138 have?

The Hamm HD 138 has a simple drive.

What type of steering does the Hamm HD 138 use for maneuverability?

The Hamm HD 138 uses articulated-frame steering for maneuverability.

What are the compaction capabilities of the Hamm HD 138 tandem vibration roller?

The Hamm HD 138 features a double vibration system, operates at a frequency of 50 Hz, generates a centrifugal force of 186 kN, and has a statical line load of 32.5 kg/cm.

What are the roller specifications of the Hamm HD 138 tandem vibration roller?

The Hamm HD 138 has rollers that are 2.14 meters wide with a diameter of 1.4 meters.

How much is a Hamm HD 138 Tandem Vibration Roller (2020u20132025) worth?

The residual value of the Hamm HD 138 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hamm HD 138 overview

Operator’s Station

Equipment

Handrails, Operator's platform with entry from both sides, 2 drive levers, Seat-operating unit, rotatable, with armrests and safety belt, Amplitude switchable: large/small, Vibration front and rear, switchable single and doubled, Lighting package as per road traffic regulations, Battery isolation switch, Water level display, Rotating seat adapter, Safety belt with belt retractor, Handrails on the operator's platform.
