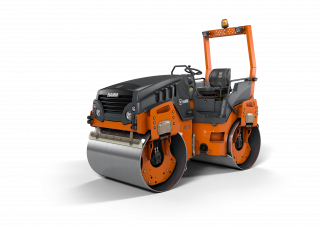

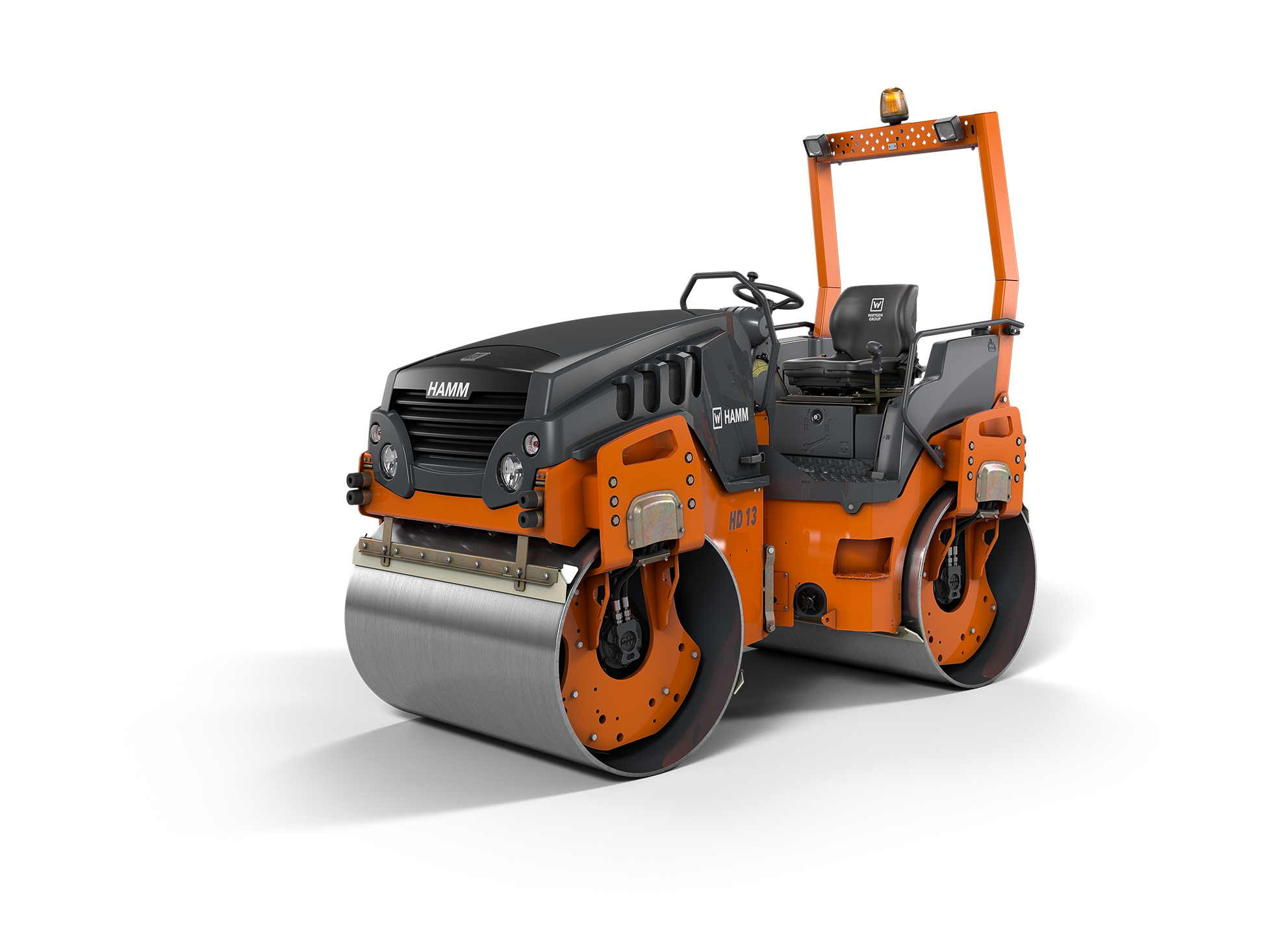

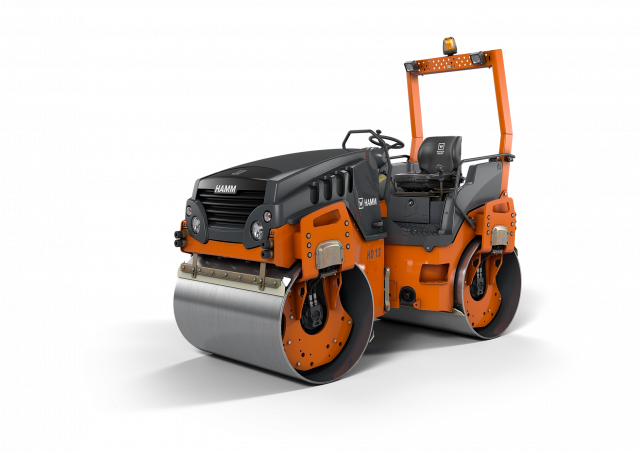

HD 13 VV Hamm HD 13 VV Specifications & Technical Data (2008—2009)
Visit Hamm live at
Technical specs - HD 13 VV Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.67 t
- Transport length
- 2.86 m
- Transport width
- 1.39 m
- Transport height
- 2.5 m
- Vibration
- d
- Drive
- A
- Steering
- KL
- Travel speed
- 10.0 km/h
- Frequency
- 61 Hz
- Roller width
- 1.3 m
- Rollers Ø
- 0.9 m
- Turning radius outside
- 2.64 m
- Statical line load
- 14.3 kg/cm
- Centrifugal force
- 64 kN
- Model series
- HD
- Engine manuf.
- Hatz
- Engine type
- 4 W 35 T
- Engine power
- 29 kW
- Revolutions at max torque
- 2800 rpm
More technical details, like: dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
