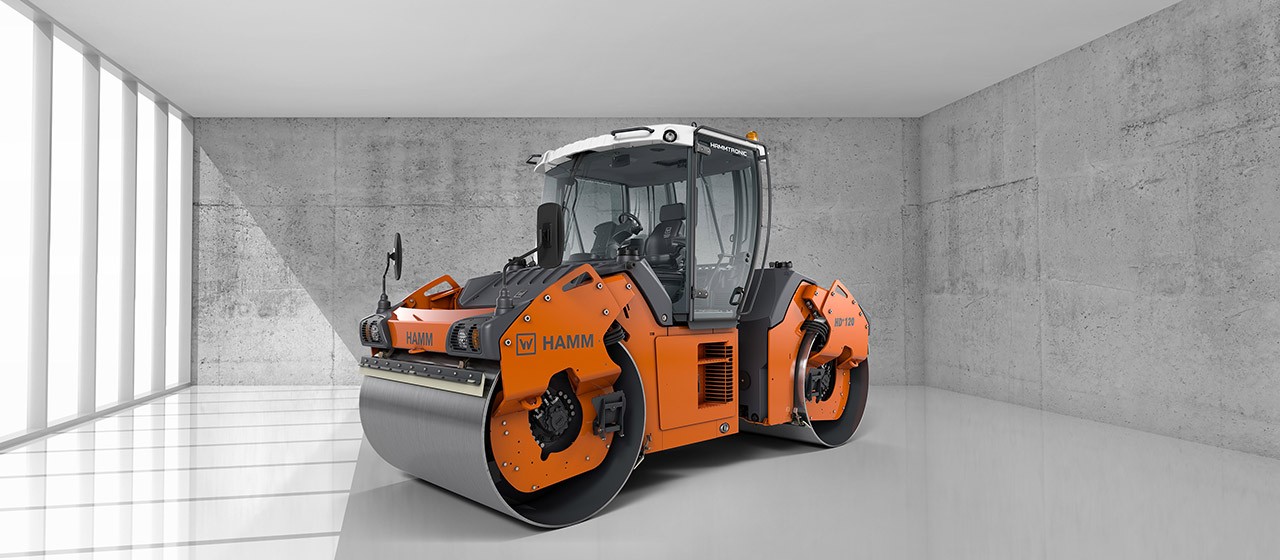

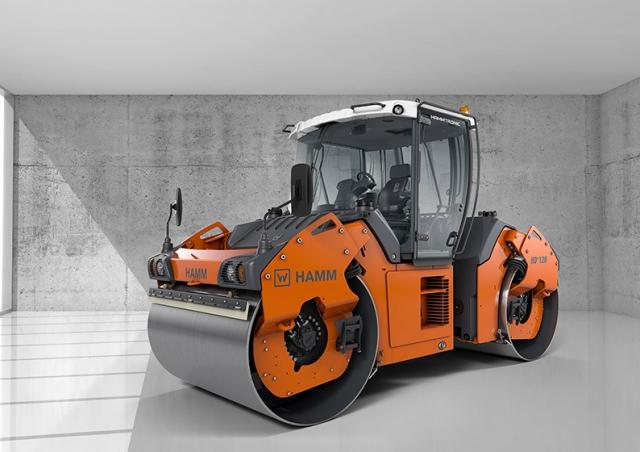

HD 120 Hamm HD 120 Specifications & Technical Data (2008—2009)
Visit Hamm live at
Technical specs - HD 120 Hamm
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.22 t
- Transport length
- 5 m
- Transport width
- 3.6 m
- Transport height
- 3.2 m
- Vibration
- d
- Drive
- A
- Steering
- KL
- Travel speed
- 12.3 km/h
- Frequency
- 50 Hz
- Roller width
- 1.98 m
- Rollers Ø
- 1.4 m
- Turning radius outside
- 5.285 m
- Statical line load
- 31.2 kg/cm
- Model series
- HD
- Engine manuf.
- Deutz
- Engine type
- TCD2012 L04 2V
- Engine power
- 100 kW
- Emission level
- Tier 3
More technical details, like: centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
