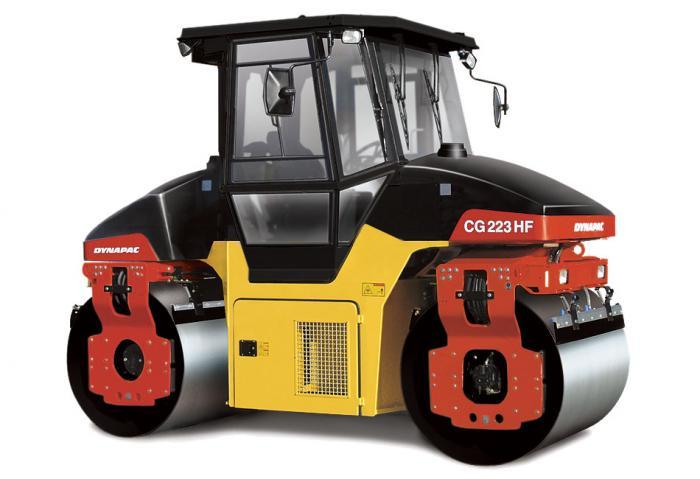

CG 223 HF Dynapac CG 223 HF Specifications & Technical Data (2011—2014)

Weight: 8.2t – Transport length: 3.9m – Transport width: 1.575m – Transport height: 2.95m – Vibration: d – Drive: A

Rollers Tandem Vibration Rollers Dynapac CG 223 HF

Visit Dynapac live at

Technical specs - CG 223 HF Dynapac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.2 t
Transport length
3.9 m
Transport width
1.575 m
Transport height
2.95 m
Vibration
d
Drive
A
Steering
VL
Travel speed
12 km/h
Frequency
67 Hz
Roller width
1.45 m
Rollers Ø
1.12 m
Turning radius outside
4.99 m
Statical line load
25.9 kg/cm
Model series
CG
Engine manuf.
Deutz
Engine type
TD2011 L4w
Engine power
65 kW
Revolutions at max torque
2600 rpm

More technical details, like: centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Dynapac CG 223 HF FAQ

When was the Dynapac CG 223 HF manufactured?

The Dynapac CG 223 HF was manufactured from 2011 to 2014.

How much does the Dynapac CG 223 HF weigh?

The Dynapac CG 223 HF weighs 8.2 tons.

What are the transport dimensions of the Dynapac CG 223 HF?

The Dynapac CG 223 HF has a transport length of 3.9 meters, a transport width of 1.58 meters, and a transport height of 2.95 meters.

What is the travel speed of the Dynapac CG 223 HF tandem vibration roller?

The Dynapac CG 223 HF has a travel speed of 12 km/h.

What type of drive system does the Dynapac CG 223 HF have in its undercarriage?

The Dynapac CG 223 HF has an all-wheel drive system in its undercarriage.

What are the maneuverability specifications of the Dynapac CG 223 HF tandem vibration roller?

The Dynapac CG 223 HF has a front steering system and an outside turning radius of 4.99 meters.

What are the compaction capabilities of the Dynapac CG 223 HF tandem vibration roller?

The Dynapac CG 223 HF features a double vibration system operating at a frequency of 67 Hz and has a statical line load of 25.9 kg/cm.

What are the roller specifications of the Dynapac CG 223 HF tandem vibration roller?

The Dynapac CG 223 HF has rollers that are 1.45 meters wide with a diameter of 1.12 meters.

How much is a Dynapac CG 223 HF Tandem Vibration Roller (2011u20132014) worth?

The residual value of the Dynapac CG 223 HF depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
