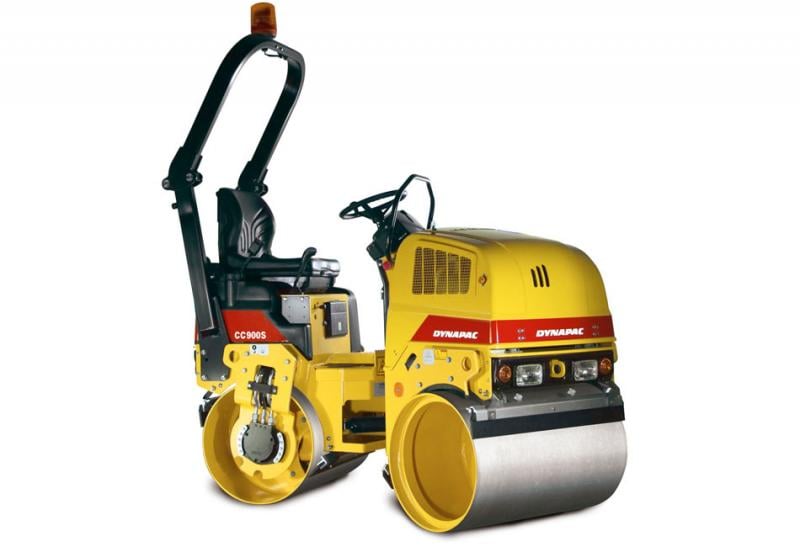

CC 900 S Dynapac CC 900 S Specifications & Technical Data (2008—2014)

Weight: 1.64t – Transport length: 2.095m – Transport width: 0.972m – Transport height: 2.5m – Steering: KL – Travel speed: 9km/h

Rollers Tandem Vibration Rollers Dynapac CC 900 S

Visit Dynapac live at

Technical specs - CC 900 S Dynapac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.64 t
Transport length
2.095 m
Transport width
0.972 m
Transport height
2.5 m
Steering
KL
Travel speed
9 km/h
Frequency
70 Hz
Roller width
0.9 m
Rollers Ø
0.584 m
Turning radius outside
2.575 m
Statical line load
9.4 kg/cm
Centrifugal force
17 kN
Model series
CC
Engine manuf.
Perkins
Engine type
403D-11
Engine power
17 kW
Revolutions at max torque
2600 rpm

More technical details, like: vibration, drive, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Dynapac CC 900 S FAQ

When was the Dynapac CC 900 S manufactured?

The Dynapac CC 900 S was manufactured from 2008 to 2014.

How much does the Dynapac CC 900 S weigh?

The Dynapac CC 900 S weighs 1.64 tons.

What are the transport dimensions of the Dynapac CC 900 S tandem vibration roller?

The Dynapac CC 900 S has a transport length of 2.1 meters, a transport width of 0.97 meters, and a transport height of 2.5 meters.

What is the travel speed of the Dynapac CC 900 S tandem vibration roller?

The Dynapac CC 900 S has a travel speed of 9 km/h.

What are the maneuverability specifications of the Dynapac CC 900 S tandem vibration roller?

The Dynapac CC 900 S features articulated-frame steering and has an outside turning radius of 2.575 meters.

What are the compaction capabilities of the Dynapac CC 900 S tandem vibration roller?

The Dynapac CC 900 S operates at a frequency of 70 Hz, generates a centrifugal force of 17 kN, and has a statical line load of 9.4 kg/cm.

What are the roller specifications of the Dynapac CC 900 S tandem vibration roller?

The Dynapac CC 900 S has rollers that are 0.9 meters wide with a diameter of 0.584 meters.

How much is a Dynapac CC 900 S Tandem Vibration Roller (2008u20132014) worth?

The residual value of the Dynapac CC 900 S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
