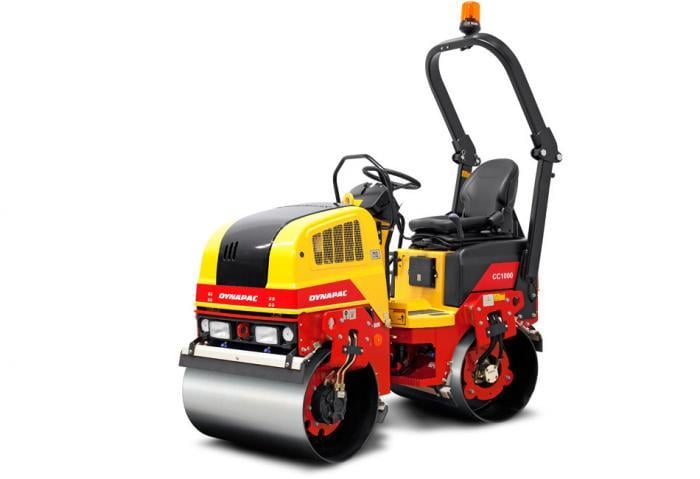

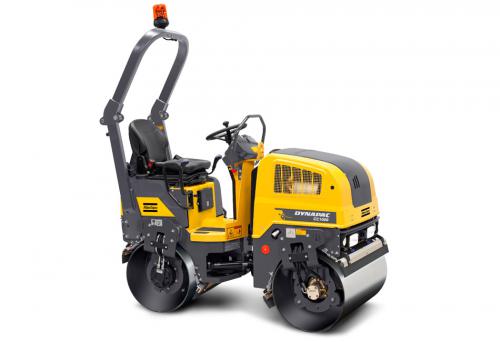

CC 1000 Dynapac CC 1000 Specifications & Technical Data (2014—2026)

Weight: 1.65t – Transport length: 2.1m – Transport width: 1.07m – Transport height: 2.33m – Vibration: d – Drive: A

Rollers Tandem Vibration Rollers Dynapac CC 1000
Rollers Tandem Vibration Rollers Dynapac CC 1000
Rollers Tandem Vibration Rollers Dynapac CC 1000
Rollers Tandem Vibration Rollers Dynapac CC 1000

Visit Dynapac live at

Technical specs - CC 1000 Dynapac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.65 t
Transport length
2.1 m
Transport width
1.07 m
Transport height
2.33 m
Vibration
d
Drive
A
Steering
KL
Travel speed
9 km/h
Frequency
70 Hz
Roller width
1 m
Rollers Ø
0.58 m
Turning radius outside
2.75 m
Statical line load
8.9 kg/cm
Model series
CC
Engine manuf.
Kubota
Engine type
D1105-E4B
Engine power
18 kW
Emission level
T4f

More technical details, like: centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Dynapac CC 1000 FAQ

When was the Dynapac CC 1000 manufactured?

The Dynapac CC 1000 was first produced in 2014.

How much does the Dynapac CC 1000 weigh?

The Dynapac CC 1000 weighs 1.65 tons.

What are the transport dimensions of the Dynapac CC 1000?

The Dynapac CC 1000 has a transport length of 2.1 meters, a transport width of 1.07 meters, and a transport height of 2.33 meters.

What is the travel speed of the Dynapac CC 1000 tandem vibration roller?

The Dynapac CC 1000 has a travel speed of 9 km/h.

What type of drive system does the Dynapac CC 1000 have in its undercarriage?

The Dynapac CC 1000 has an all-wheel drive system in its undercarriage.

What is the outside turning radius and steering type of the Dynapac CC 1000 tandem vibration roller?

The Dynapac CC 1000 has an outside turning radius of 2.75 meters and features articulated-frame steering.

What are the compaction capabilities of the Dynapac CC 1000 tandem vibration roller?

The Dynapac CC 1000 features a double vibration system, operates at a frequency of 70 Hz, and has a statical line load of 8.9 kg/cm.

What are the roller specifications of the Dynapac CC 1000 tandem vibration roller?

The Dynapac CC 1000 has rollers that are 1 meter wide with a diameter of 0.58 meters.

How much is a Dynapac CC 1000 Tandem Vibration Roller (2014u20132025) worth?

The residual value of the Dynapac CC 1000 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
