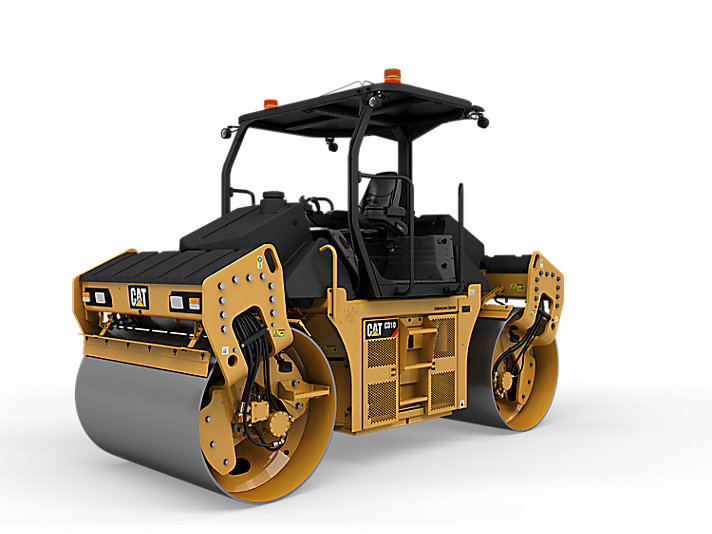

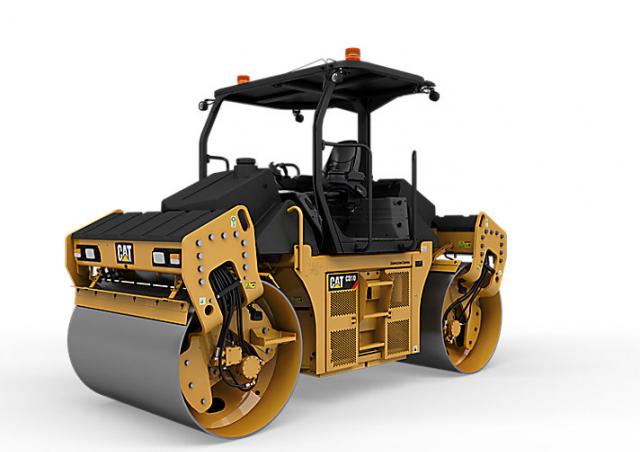

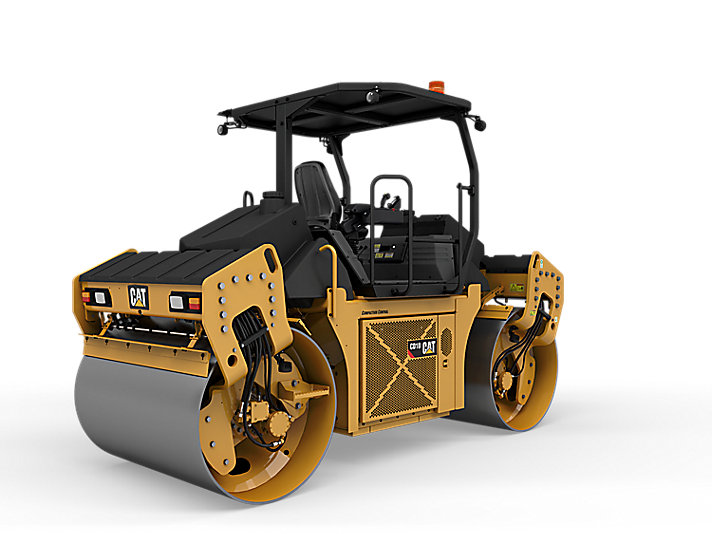

Caterpillar CD10 Specifications & Technical Data (2017-2026)

Technical specs - CD10 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.03 t

Transport length: 4.322 m

Transport width: 1.874 m

Transport height: 2.99 m

Travel speed: 12 km/h

Roller width: 1.7 m

Rollers Ø: 1.202 m

Statical line load: 26.5 kg/cm

Centrifugal force: 128.9 kN

Model series: CD

Engine manuf.: Caterpillar

Engine type: C3.4B

Engine power: 75 kW

Displacement: 3.4 l

Max. torque: 420/1400 Nm

Cylinder bore x stroke: 99x110 mm

Emission level: III b

More technical details, like: vibration, drive, steering, frequency, turning radius outside, dimension lxwxh, revolutions at max torque, no. of cylinders are available in the full technical specs.

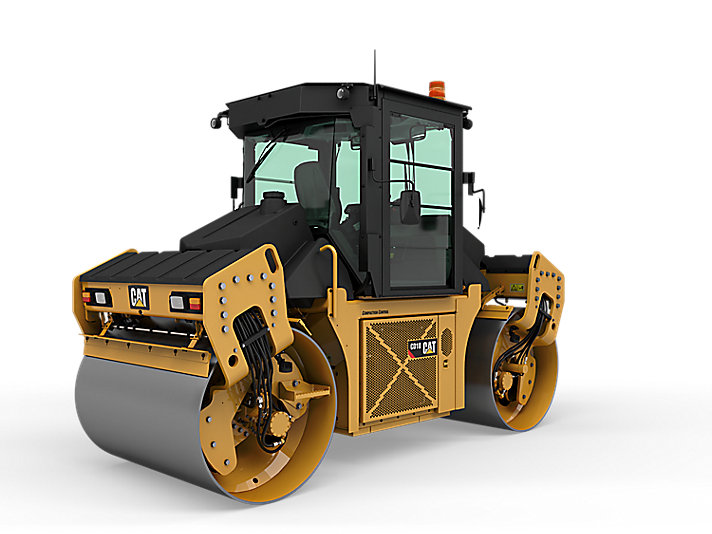

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: No
Compression control: No
Aircondition: No

Download specalog and datasheets (PDF)

CD10 Caterpillar Specification for Europe (EN)

Caterpillar CD10 FAQ

When was the Caterpillar CD10 manufactured?

The Caterpillar CD10 was first produced in 2017.

How much does the Caterpillar CD10 weigh?

The Caterpillar CD10 weighs 9.03 tons.

What are the transport dimensions of the Caterpillar CD10 tandem vibration roller?

The Caterpillar CD10 has transport dimensions of 4.32 meters in length, 1.87 meters in width, and 2.99 meters in height.

What is the travel speed of the Caterpillar CD10 tandem vibration roller?

The Caterpillar CD10 tandem vibration roller has a travel speed of 12 km/h.

What are the compaction capabilities of the Caterpillar CD10 tandem vibration roller?

The Caterpillar CD10 tandem vibration roller generates a centrifugal force of 128.9 kN and has a statical line load of 26.5 kg/cm.

What are the roller specifications of the Caterpillar CD10 tandem vibration roller?

The Caterpillar CD10 has rollers that are 1.7 meters wide with a diameter of 1.202 meters.

How much is a Caterpillar CD10 Tandem Vibration Roller (2017u20132025) worth?

The residual value of the Caterpillar CD10 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
