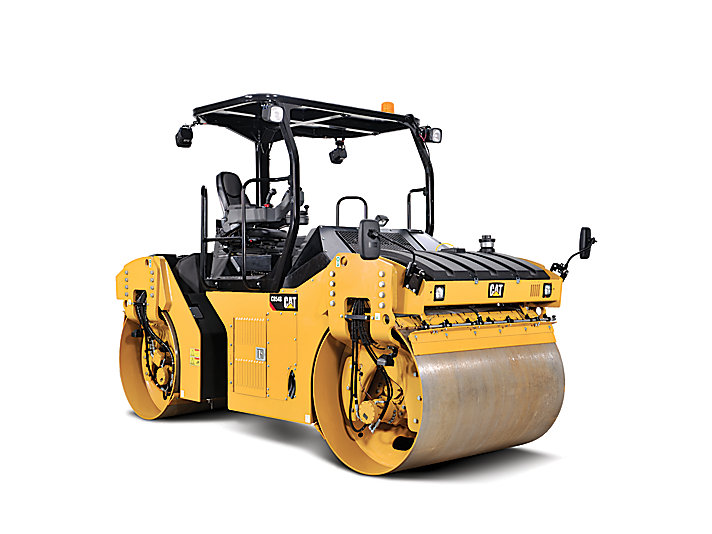

Caterpillar CB54B Specifications & Technical Data (2012-2021)

Technical specs - CB54B Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.71 t

Transport length: 4.57 m

Transport width: 1.87 m

Transport height: 2.98 m

Travel speed: 11 km/h

Frequency: 43 Hz

Roller width: 1.7 m

Rollers Ø: 1.198 m

Statical line load: 28.5 kg/cm

Centrifugal force: 107 kN

Model series: CB

Engine manuf.: Caterpillar

Engine type: C4.4

Engine power: 98 kW

Displacement: 4.4 l

Emission level: Tier 4 f

More technical details, like: vibration, drive, steering, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: No
Compression control: No
Aircondition: No

Download specalog and datasheets (PDF)

Caterpillar CB54B FAQ

When was the Caterpillar CB54B manufactured?

The Caterpillar CB54B was manufactured from 2012 to 2021.

How much does the Caterpillar CB54B weigh?

The Caterpillar CB54B weighs 9.71 tons.

What are the transport dimensions of the Caterpillar CB54B tandem vibration roller?

The Caterpillar CB54B has a transport length of 4.57 meters, a transport width of 1.87 meters, and a transport height of 2.98 meters.

What is the travel speed of the Caterpillar CB54B tandem vibration roller?

The Caterpillar CB54B tandem vibration roller has a travel speed of 11 km/h.

What are the compaction capabilities of the Caterpillar CB54B tandem vibration roller?

The Caterpillar CB54B tandem vibration roller operates at a frequency of 43 Hz, generates a centrifugal force of 107 kN, and has a statical line load of 28.5 kg/cm.

What are the roller specifications of the Caterpillar CB54B tandem vibration roller?

The Caterpillar CB54B has rollers with a width of 1.7 meters and a diameter of 1.198 meters.

How much is a Caterpillar CB54B Tandem Vibration Roller (2012u20132021) worth?

The residual value of the Caterpillar CB54B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
