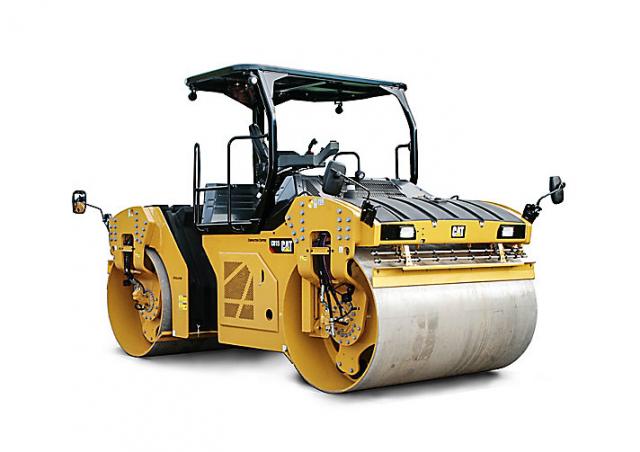

Caterpillar CB16 Specifications & Technical Data (2019-2026)

Technical specs - CB16 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 14.49 t

Transport length: 4.74 m

Transport width: 2.32 m

Transport height: 3.07 m

Vibration: e/d

Travel speed: 13 km/h

Frequency: 63.3 Hz

Roller width: 2.13 m

Rollers Ø: 1.3 m

Statical line load: 36 kg/cm

Centrifugal force: 138.2 kN

Model series: CB

Engine manuf.: Caterpillar

Engine type: C4.4 Acert

Engine power: 106 kW

No. of cylinders: 4

Cylinder bore x stroke: 105x127 mm

More technical details, like: drive, steering, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: No
Compression control: No
Aircondition: No

Download specalog and datasheets (PDF)

CB16 Caterpillar Specification for North America (EN)

Caterpillar CB16 FAQ

When was the Caterpillar CB16 manufactured?

The Caterpillar CB16 was first produced in 2019.

How much does the Caterpillar CB16 weigh?

The Caterpillar CB16 weighs 14.49 tons.

What are the transport dimensions of the Caterpillar CB16 tandem vibration roller?

The Caterpillar CB16 has a transport length of 4.74 meters, a transport width of 2.32 meters, and a transport height of 3.07 meters.

What is the travel speed of the Caterpillar CB16 tandem vibration roller?

The Caterpillar CB16 tandem vibration roller has a travel speed of 13 km/h.

What are the compaction capabilities of the Caterpillar CB16 tandem vibration roller?

The Caterpillar CB16 tandem vibration roller features double and single vibration modes, operates at a frequency of 63.3 Hz, generates a centrifugal force of 138.2 kN, and has a statical line load of 36 kg/cm.

What are the roller specifications of the Caterpillar CB16 tandem vibration roller?

The Caterpillar CB16 tandem vibration roller has rollers that are 2.13 meters wide with a diameter of 1.3 meters.

How much is a Caterpillar CB16 Tandem Vibration Roller (2019u20132025) worth?

The residual value of the Caterpillar CB16 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
