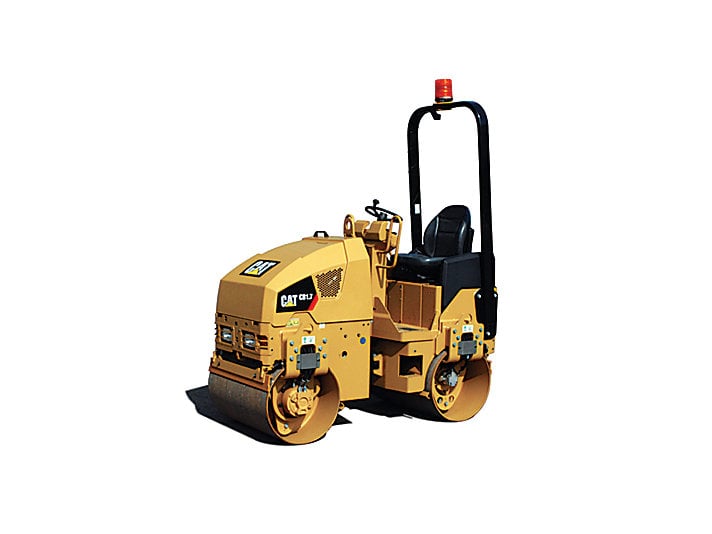

Caterpillar CB1.8 Specifications & Technical Data (2019-2026)

Technical specs - CB1.8 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.8 t

Transport length: 2.04 m

Transport width: 1.11 m

Transport height: 2.4 m

Vibration: e/d

Travel speed: 8.6 km/h

Frequency: 57 Hz

Roller width: 1 m

Rollers Ø: 0.575 m

Statical line load: 9.1 kg/cm

Centrifugal force: 13.6 kN

Model series: CB

Engine manuf.: Caterpillar

Engine type: C1.1

Engine power: 18.4 kW

Emission level: EU V

More technical details, like: drive, steering, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: Yes
Compression control: No
Aircondition: No

Download specalog and datasheets (PDF)

Caterpillar CB1.8 FAQ

When was the Caterpillar CB1.8 manufactured?

The Caterpillar CB1.8 was first produced in 2019.

How much does the Caterpillar CB1.8 weigh?

The Caterpillar CB1.8 weighs 1.8 tons.

What are the transport dimensions of the Caterpillar CB1.8 tandem vibration roller?

The Caterpillar CB1.8 has a transport length of 2.04 meters, a transport width of 1.11 meters, and a transport height of 2.4 meters.

What is the travel speed of the Caterpillar CB1.8 tandem vibration roller?

The Caterpillar CB1.8 has a travel speed of 8.6 km/h.

What are the compaction capabilities of the Caterpillar CB1.8 tandem vibration roller?

The Caterpillar CB1.8 features double and single vibration modes, operates at a frequency of 57 Hz, generates a centrifugal force of 13.6 kN, and has a statical line load of 9.1 kg/cm.

What are the roller specifications of the Caterpillar CB1.8 tandem vibration roller?

The Caterpillar CB1.8 tandem vibration roller has a roller width of 1 meter and roller diameters of 0.575 meters.
