CB-564D Caterpillar CB-564D Specifications & Technical Data (2005—2026)

Productivity and Reliability in a Durable Package

The CB-500 D-Series Asphalt Compactors offer compaction performance, application versatility and operator comfort in order to maximize productivity while providing exceptional product quality.

Comfort and Serviceability You Deserve.

The operator’s station provides a comfortable and user friendly environment that promotes productive operation. Simplified service access and extended service intervals minimize maintenance time and increase machine production.

Turbocharged for Top Performance

The turbocharged engine provides efficient operation especially at high altitudes, up to 2500 meters (8,200 feet) without derating.

Engine

Cat 3054C turbocharged diesel engine delivers 97 kW (130 hp) and is built for performance and reliability without sacrificing fuel economy. The cooling system delivers fresh air from above the engine for clean and efficient operation.

Serviceability

The one-piece fiberglass hood opens upward and rearward to allow access to the engine and daily maintenance points. Daily check points are accessible from ground level. Ground level service is also provided on the water spray system with pumps, filters, and drain valves grouped together and centrally located. The rear mounted cooling system with fresh air intake reduces the need for cleaning. The engine oil change interval is 500 hours and the vibratory bearing lube service interval of 3 year/3000 hour keeps maintenance to a minimum and maximizes production. The articulation hitch area features sealed-for-life bearings that never need maintenance.

3 Year/3000 Hour Service Interval

Moving parts are separated from lubricating oil keeping oil clean to ensure long bearing life. Bearing oil has a 3 year/3000 hour service interval.

Vertical-Lift Hood Arrangement

The vertical-lift hood allows routine service when parked close to other machines and structures, providing easy ground level access to routine maintenance points.

Vibratory Systems

Pod-style eccentric weights with more amplitude selections provide peak compaction performance and minimal service. The high dynamic force helps achieve density in the fewest number of passes. The Versa Vibe vibratory system provides both high amplitude or high frequency in one machine for working on tough superpave mixes or on tender marshall mixes. The dual amplitude/dual frequency vibratory system provides the capability of working in high frequency on thin lift applications.

Cb-564d

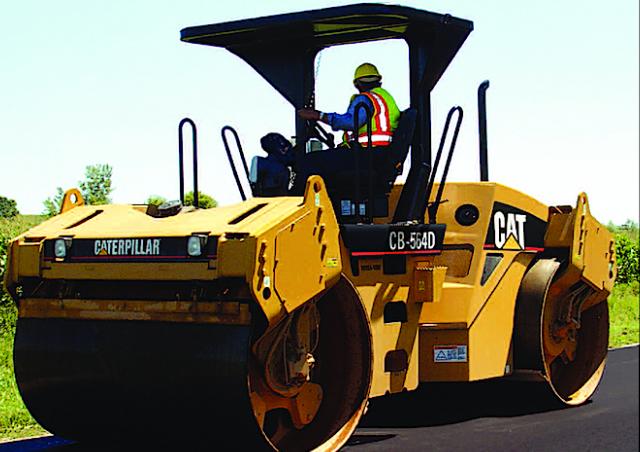

The CB-564D includes a 2.13 m (84") drum for increased lane coverage. It is a versatile machine that provides Versa Vibe as the standard vibratory system. The compactor can be used in breakdown or intermediate positions. When in the static mode, the CB-564D can be used in the finish position.

Four Amplitudes and Two Frequencies

Versa Vibe offers four amplitude selections and two frequencies of 42 Hz (2,520 vpm) and 63.3 Hz (3,800 vpm) for customers who value both high amplitude and high frequency in one machine.

Versa Vibe Vibratory System

The CB-564D is equipped with the Versa Vibe vibratory system which includes two frequencies of 63 Hz (3,800 vpm) and 42 Hz (2,520 vpm). The Versa Vibe system provides high frequency for thin lifts or high amplitude for demanding Superpave mixes.

Optional Equipment

Versa Vibe Vibratory SystemDual Amplitude and Dual Frequency Vibratory System (CB-534D, CB-534D XW)Offset Hitch (CB-534D, CB-534D XW)Water Distribution MatsCocoa MatsWater Spray Freeze Protection KitDrum CoversHigh Intensity Discharge LightsWarning BeaconExternal MirrorsBrass Water Spray Nozzles.

Counter-Rotating Weights

The eccentric weights in the front and rear drums counter-rotate from each other, one eccentric weight is always rotating in the direction of travel.

Water Spray System

Caterpillar’s exclusive dual-pump water spray system provides the operator with an efficient, easy access drum watering system. A large polyethylene tank, triple water filtration and infinitely variable spray settings are some of the benefits integrated into the system. An optional overnight freeze protection kit is also available for cold weather construction.

Two Pump System

An auto pump control setting selects water from one pump while traveling forward and water from the other pump while traveling rearward. The system maintains even pump usage for uniform life. Manual override control is provided.

Triple Water Filtration

Water filtration reduces machine downtime caused by system clogs. A mesh strainer is located in the water fill port. The water pump and spray nozzles include screen filters that provide simple access and cleaning.

Nozzle Orientation

The upward spray nozzle orientation allows water to drain back into the supply line, limiting particle accumulation in the nozzle filter.

Constant or Intermittent Spray Capability

The water spray system provides constant or intermittent spray settings. The intermittent spray setting provides longer operation between fill-ups. The intermittent spray is infinitely variable allowing fine-tuning for any condition.

Quick Release Spray Bars Covers

Quick release spray bar covers shield the spray bars and nozzles from wind and sun, allowing the spray nozzles to provide consistent coverage across the drum surface.

Freeze Protection Kit (Optional)

The freeze protection kit includes an in-line antifreeze bottle that allows the operator to pump antifreeze into the system.

Service Refill Capacities

Fuel Tank 219 Liters 58 GallonsCooling System 19.5 Liters 5.2 GallonsEngine Oil (w/filter) 9 Liters 2.4 GallonsVibrator Bearing Lubrication 20 Liters 5.3 GallonsHydraulic Tank 60 Liters 15.8 GallonsWater (Spray) Tank 1100 Liters 290 Gallons. Figures describe tank at "full" level. Actual tank capacity is higher. Hydraulic/Charge oil is filtered by a 10 micron change of filter.

Operator’s Station

The operator’s station features comfort and visibility. A tilting steering column, propel lever wrist rest, and conveniently located and grouped control switches and gauges enhance operator productivity and reduce fatigue. Heavy-duty isolation mounts provide a smooth ride. Machines with the ROPS/FOPS platform include quick release handrails that can be individually adjusted to accommodate multiple operating positions. For FOPS protection to be effective, the operator must be seated under the canopy.

Automatic Vibration Control

The vibratory system automatically starts when the propel lever is moved from neutral and stops when positioned in neutral. A manual vibratory control is also provided.

Vibratory Control Switch

The vibratory control switch on the console allows the operator to change vibe settings on-the-run from aggressive high amplitude to fast high frequency.

Multi-Function Propel Handle

The multifunction propel handle simplifies operation with the following controls: propel speed, vibe on/off, water spray on/off, horn and optional drum offset.

Steering Console

The entire console tilts for simple entrance and exit. A lockable vandal cover is provided for the console.

Comfortable and Durable Seat

The seat has adjustable fore/aft position, suspension stiffness, and flip-up arm rests with a 76 mm (3") wide retractable seat belt.

Automatic Speed Control

A speed control dial located on the operator’s console simplifies operation by allowing the operator to preset the machine speed or impact spacing. The speed control dial allows the operator to push the propel lever to the forward or reverse positions while repeating the desired speed or impact spacing.

Multi-Position Seating

The multi-position operator’s station provides good visibility to the drum edges, drum surfaces, water spray nozzles and overall visibility around the machine.

Folded Drum Supports

Vertically folded drum supports provide the operator with good sight lines to the drum edges when working near obstructions.
