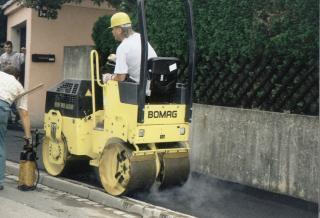

BW 80 ADS Bomag BW 80 ADS Specifications & Technical Data (1999—2008)
Visit Bomag live at
Technical specs - BW 80 ADS Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.6 t
- Transport length
- 1.86 m
- Transport width
- 0.85 m
- Transport height
- 2.3 m
- Vibration
- e
- Drive
- A
- Steering
- KL
- Travel speed
- 8 km/h
- Frequency
- 60 Hz
- Roller width
- 0.9 m
- Rollers Ø
- 0.58 m
- Statical line load
- 11 kg/cm
- Model series
- BW
- Engine manuf.
- Kubota
- Engine type
- D722B
- Engine power
- 11.9 kW
- Revolutions at max torque
- 3000 rpm
More technical details, like: turning radius outside, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Bomag BW 80 ADS FAQ
How much does the Bomag BW 80 ADS weigh?
What are the transport dimensions of the Bomag BW 80 ADS?
What is the travel speed of the Bomag BW 80 ADS?
What type of drive system does the Bomag BW 80 ADS have in its undercarriage?
What type of steering does the Bomag BW 80 ADS use for maneuverability?
What are the compaction capabilities of the Bomag BW 80 ADS tandem vibration roller?
What are the roller specifications of the Bomag BW 80 ADS tandem vibration roller?
