BW 80 AD-5 Bomag BW 80 AD-5 Specifications & Technical Data (2018—2026)

Weight: 1.5t – Transport length: 1.86m – Transport width: 0.85m – Transport height: 2.3m – Vibration: d – Drive: A

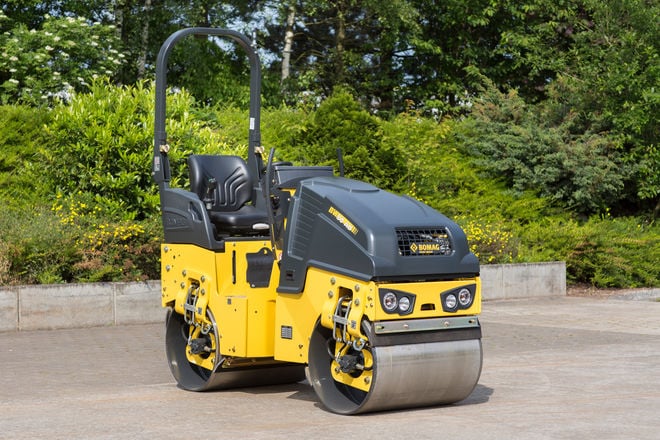

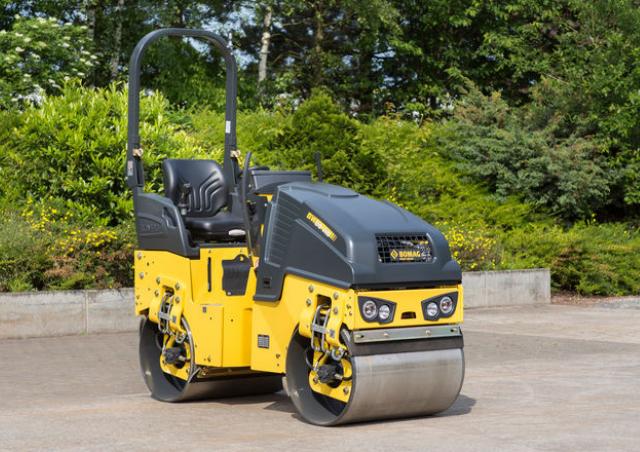

Rollers Tandem Vibration Rollers Bomag BW 80 AD-5
Rollers Tandem Vibration Rollers Bomag BW 80 AD-5
Rollers Tandem Vibration Rollers Bomag BW 80 AD-5
Rollers Tandem Vibration Rollers Bomag BW 80 AD-5

Visit Bomag live at

Technical specs - BW 80 AD-5 Bomag

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.5 t
Transport length
1.86 m
Transport width
0.85 m
Transport height
2.3 m
Vibration
d
Drive
A
Steering
KL
Travel speed
10 km/h
Frequency
63 Hz
Roller width
0.8 m
Rollers Ø
0.58 m
Turning radius outside
2.08 m
Statical line load
9.7 kg/cm
Centrifugal force
17 kN
Model series
BW
Engine manuf.
Kubota
Engine type
D902
Engine power
15.1 kW
Revolutions at max torque
3000 rpm
No. of cylinders
3
Emission level
V/Tier 4f

More technical details, like: dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Bomag BW 80 AD-5 FAQ

When was the Bomag BW 80 AD-5 manufactured?

The Bomag BW 80 AD-5 was first produced in 2018.

How much does the Bomag BW 80 AD-5 weigh?

The Bomag BW 80 AD-5 weighs 1.5 tons.

What are the transport dimensions of the Bomag BW 80 AD-5?

The Bomag BW 80 AD-5 has a transport length of 1.86 meters, a transport width of 0.85 meters, and a transport height of 2.3 meters.

What is the travel speed of the Bomag BW 80 AD-5?

The Bomag BW 80 AD-5 has a travel speed of 10 km/h.

What type of drive system does the Bomag BW 80 AD-5 have in its undercarriage?

The Bomag BW 80 AD-5 has an all-wheel drive system in its undercarriage.

What are the maneuverability specifications of the Bomag BW 80 AD-5 tandem vibration roller?

The Bomag BW 80 AD-5 has an articulated-frame steering system and an outside turning radius of 2.08 meters.

What are the compaction capabilities of the Bomag BW 80 AD-5 tandem vibration roller?

The Bomag BW 80 AD-5 features a double vibration system operating at a frequency of 63 Hz, generates a centrifugal force of 17 kN, and has a statical line load of 9.7 kg/cm.

What are the roller specifications of the Bomag BW 80 AD-5 tandem vibration roller?

The Bomag BW 80 AD-5 has rollers that are 0.8 meters wide with a diameter of 0.58 meters.

How much is a Bomag BW 80 AD-5 Tandem Vibration Roller (2018u20132025) worth?

The residual value of the Bomag BW 80 AD-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
