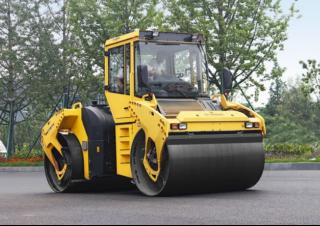

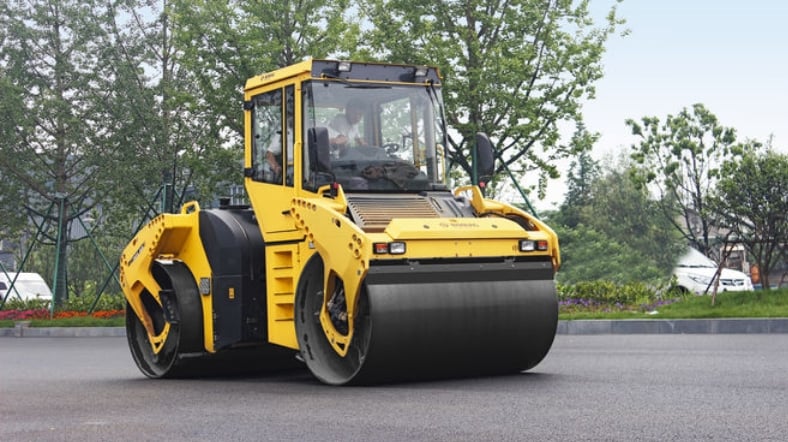

Bomag BW 203 ADO-4 Specifications & Technical Data (2022-2026)

Technical specs - BW 203 ADO-4 Bomag

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.5 t

Transport length: 4.61 m

Transport width: 2.295 m

Transport height: 3 m

Vibration: d

Drive: A

Steering: KL

Frequency: 50 Hz

Roller width: 2.135 m

Statical line load: 30.9 kg/cm

Centrifugal force: 126 kN

Model series: BW

Engine manuf.: Deutz

Engine type: TCD 2012 L04 2V

Engine power: 100 kW

Revolutions at max torque: 2300 rpm

No. of cylinders: 4

Emission level: Stage IIIA / TIER 3

More technical details, like: travel speed, rollers Ø, turning radius outside, dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: No
Compression control: No
Aircondition: No

Download datasheets (PDF)

Bomag BW 203 ADO-4 FAQ

When was the Bomag BW 203 ADO-4 manufactured?

The Bomag BW 203 ADO-4 was first produced in 2022.

How much does the Bomag BW 203 ADO-4 weigh?

The Bomag BW 203 ADO-4 weighs 12.5 tons.

What are the transport dimensions of the Bomag BW 203 ADO-4?

The Bomag BW 203 ADO-4 has a transport length of 4.61 meters, a transport width of 2.3 meters, and a transport height of 3 meters.

What type of drive system does the undercarriage of the Bomag BW 203 ADO-4 have?

The undercarriage of the Bomag BW 203 ADO-4 features an all-wheel drive system.

What type of steering does the Bomag BW 203 ADO-4 use for maneuverability?

The Bomag BW 203 ADO-4 uses articulated-frame steering for maneuverability.

What are the compaction capabilities of the Bomag BW 203 ADO-4 tandem vibration roller?

The Bomag BW 203 ADO-4 features a double vibration system operating at a frequency of 50 Hz, generates a centrifugal force of 126 kN, and has a statical line load of 30.9 kg/cm.

What is the roller width of the Bomag BW 203 ADO-4?

The Bomag BW 203 ADO-4 has a roller width of 2.14 meters.

How much is a Bomag BW 203 ADO-4 Tandem Vibration Roller (2022u20132025) worth?

The residual value of the Bomag BW 203 ADO-4 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
