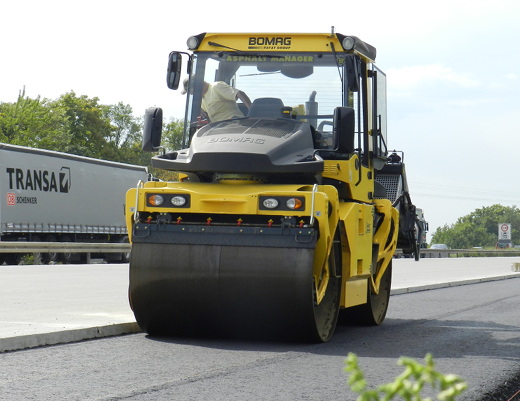

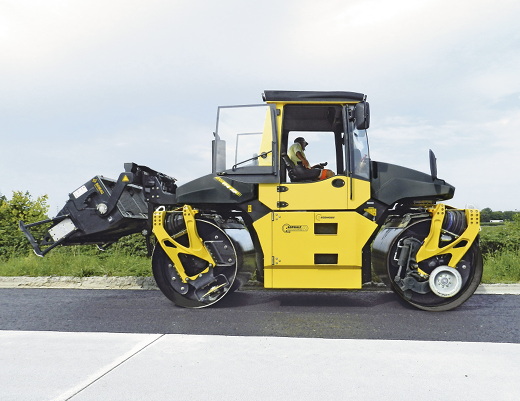

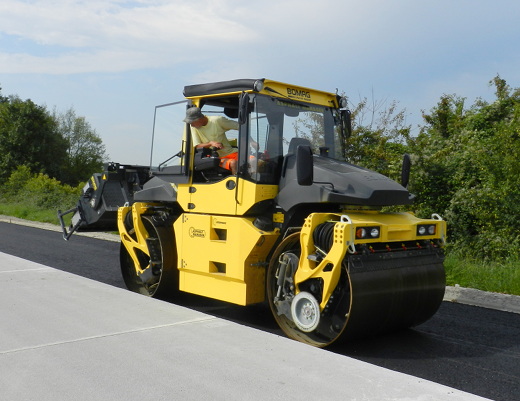

BW 174 AP 4f AM Bomag BW 174 AP 4f AM Specifications & Technical Data (2017—2022)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Bomag live at
Technical specs - BW 174 AP 4f AM Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 9.5 t
- Transport length
- 4.42 m
- Transport width
- 1.826 m
- Transport height
- 3 m
- Vibration
- d
- Drive
- A
- Steering
- DSL
- Travel speed
- 10 km/h
- Frequency
- 45 Hz
- Roller width
- 1.68 m
- Rollers Ø
- 1.22 m
- Statical line load
- 29.8 kg/cm
- Model series
- BW
- Engine manuf.
- Deutz
- Engine type
- TCD3.6 L4
- Engine power
- 74 kW
- Displacement
- 3.6 l
- Revolutions at max torque
- 1600 rpm
- No. of cylinders
- 4
- Emission level
- V/Tier 4 f
More technical details, like: turning radius outside, centrifugal force, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
No
Download datasheets (PDF)
Bomag BW 174 AP 4f AM FAQ
How much does the Bomag BW 174 AP 4f AM weigh?
What are the transport dimensions of the Bomag BW 174 AP 4f AM?
What is the travel speed of the Bomag BW 174 AP 4f AM?
What type of drive system does the Bomag BW 174 AP 4f AM have in its undercarriage?
What type of steering system does the Bomag BW 174 AP 4f AM use for maneuverability?
What are the compaction capabilities of the Bomag BW 174 AP 4f AM tandem vibration roller?
What are the roller specifications of the Bomag BW 174 AP 4f AM tandem vibration roller?
How much is a Bomag BW 174 AP 4f AM Tandem Vibration Roller (2017u20132022) worth?
Events
Visit Bomag live at
Machine inspection
Ask for inspection of your Bomag BW 174 AP 4f AM from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Bomag BW 174 AP 4f AM with similar Tandem Vibration Rollers
.jpg)

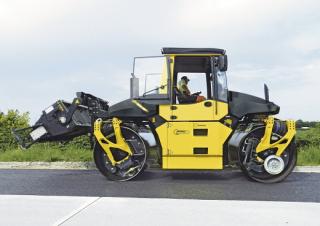

Bomag BW 174 AP 4f AM
