BW 174 AP 4f Bomag BW 174 AP 4f Specifications & Technical Data (2019—2022)

Weight: 9.2t – Transport length: 4.42m – Transport width: 1.826m – Transport height: 3m – Vibration: d – Drive: A

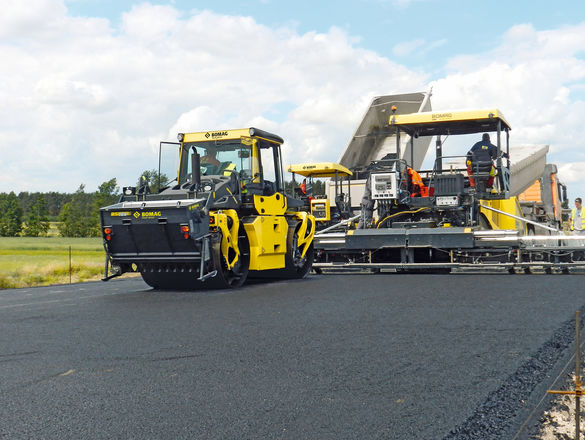

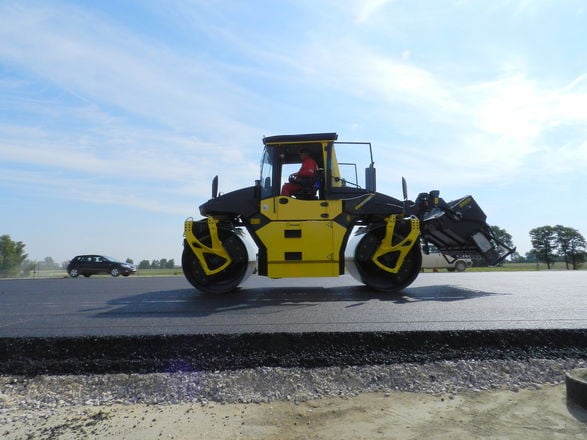

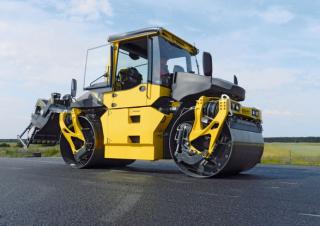

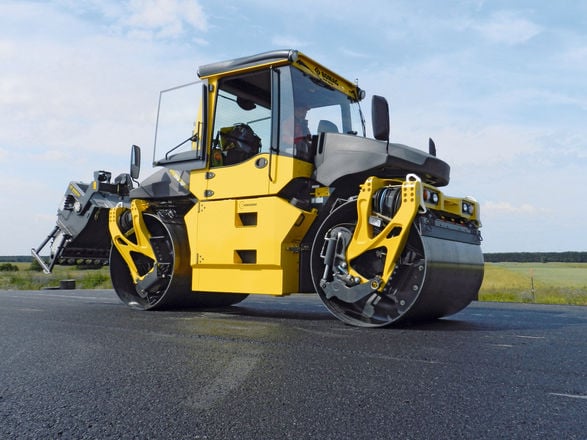

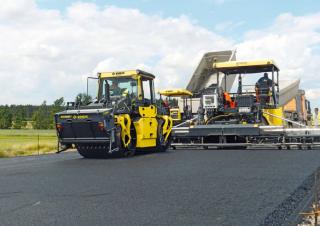

Rollers Tandem Vibration Rollers Bomag BW 174 AP 4f
Rollers Tandem Vibration Rollers Bomag BW 174 AP 4f
Rollers Tandem Vibration Rollers Bomag BW 174 AP 4f
Rollers Tandem Vibration Rollers Bomag BW 174 AP 4f
Rollers Tandem Vibration Rollers Bomag BW 174 AP 4f
Rollers Tandem Vibration Rollers Bomag BW 174 AP 4f

Visit Bomag live at

Technical specs - BW 174 AP 4f Bomag

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.2 t
Transport length
4.42 m
Transport width
1.826 m
Transport height
3 m
Vibration
d
Drive
A
Steering
DSL
Travel speed
10.5 km/h
Frequency
55 Hz
Roller width
1.68 m
Rollers Ø
1.22 m
Statical line load
28 kg/cm
Centrifugal force
80 kN
Model series
BW
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
74.4 kW
Revolutions at max torque
2000 rpm
No. of cylinders
4
Emission level
IV/Tier 4f

More technical details, like: turning radius outside, dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
Yes
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Bomag BW 174 AP 4f FAQ

When was the Bomag BW 174 AP 4f manufactured?

The Bomag BW 174 AP 4f was manufactured from 2019 to 2022.

How much does the Bomag BW 174 AP 4f weigh?

The Bomag BW 174 AP 4f weighs 9.2 tons.

What are the transport dimensions of the Bomag BW 174 AP 4f?

The Bomag BW 174 AP 4f has a transport length of 4.42 meters, a transport width of 1.83 meters, and a transport height of 3 meters.

What is the travel speed of the Bomag BW 174 AP 4f tandem vibration roller?

The Bomag BW 174 AP 4f has a travel speed of 10.5 km/h.

What type of drive system does the Bomag BW 174 AP 4f have in its undercarriage?

The Bomag BW 174 AP 4f has an all-wheel drive system in its undercarriage.

What type of steering system does the Bomag BW 174 AP 4f use?

The Bomag BW 174 AP 4f uses a double center pivot plate steering system for maneuverability.

What are the compaction specifications of the Bomag BW 174 AP 4f tandem vibration roller?

The Bomag BW 174 AP 4f features a double vibration system, operates at a frequency of 55 Hz, generates a centrifugal force of 80 kN, and has a statical line load of 28 kg/cm.

What are the roller specifications of the Bomag BW 174 AP 4f tandem vibration roller?

The Bomag BW 174 AP 4f has rollers that are 1.68 meters wide with a diameter of 1.22 meters.

How much is a Bomag BW 174 AP 4f Tandem Vibration Roller (2019u20132022) worth?

The residual value of the Bomag BW 174 AP 4f depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
