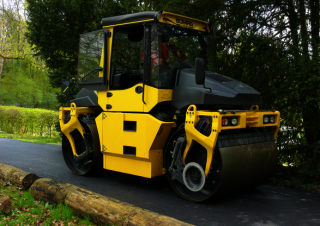

BW 154 AP.4-v Bomag BW 154 AP.4-v Specifications & Technical Data (2018—2022)
Visit Bomag live at
Technical specs - BW 154 AP.4-v Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.1 t
- Transport length
- 3.99 m
- Transport width
- 1.665 m
- Transport height
- 2.95 m
- Vibration
- d
- Drive
- A
- Steering
- KL
- Travel speed
- 10 km/h
- Frequency
- 55 Hz
- Roller width
- 1.5 m
- Rollers Ø
- 0.735 m
- Turning radius outside
- 2.95 m
- Statical line load
- 23.7 kg/cm
- Centrifugal force
- 69 kN
- Model series
- BW
- Engine manuf.
- Kubota
- Engine type
- V3307 CR-T
- Engine power
- 55.4 kW
- Displacement
- 3.3 l
- Revolutions at max torque
- 2400 rpm
- No. of cylinders
- 4
- Emission level
- V/Tier 4f
More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Bomag BW 154 AP.4-v FAQ
How much does the Bomag BW 154 AP.4-v weigh?
What are the transport dimensions of the Bomag BW 154 AP.4-v?
What is the travel speed of the Bomag BW 154 AP.4-v tandem vibration roller?
What type of drive system does the Bomag BW 154 AP.4-v have in its undercarriage?
What are the maneuverability specifications of the Bomag BW 154 AP.4-v tandem vibration roller?
What are the compaction capabilities of the Bomag BW 154 AP.4-v tandem vibration roller?
What are the roller specifications of the Bomag BW 154 AP.4-v?
