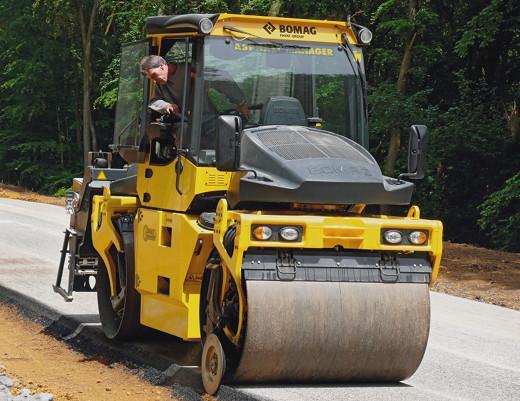

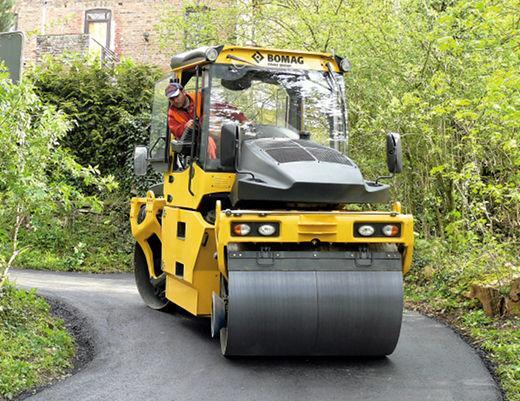

BW 154 AP-4 AM Bomag BW 154 AP-4 AM Specifications & Technical Data (2008—2017)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Bomag live at
Technical specs - BW 154 AP-4 AM Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.3 t
- Transport length
- 3.99 m
- Transport width
- 1.665 m
- Transport height
- 2.955 m
- Vibration
- d
- Drive
- A
- Steering
- KL
- Travel speed
- 12 km/h
- Frequency
- 45 Hz
- Roller width
- 1.5 m
- Rollers Ø
- 1.1 m
- Statical line load
- 25 kg/cm
- Centrifugal force
- 119 kN
- Model series
- BW
- Engine manuf.
- Kubota
- Engine type
- V3307DI-T
- Engine power
- 55.4 kW
- Displacement
- 3331 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 268 Nm
- No. of cylinders
- 4
- Emission level
- Tier 3a
More technical details, like: turning radius outside, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
No
Download datasheets (PDF)
