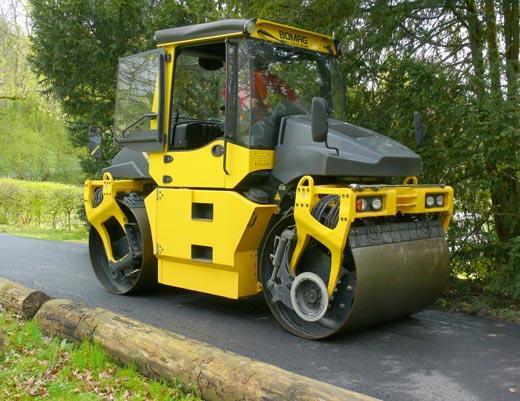

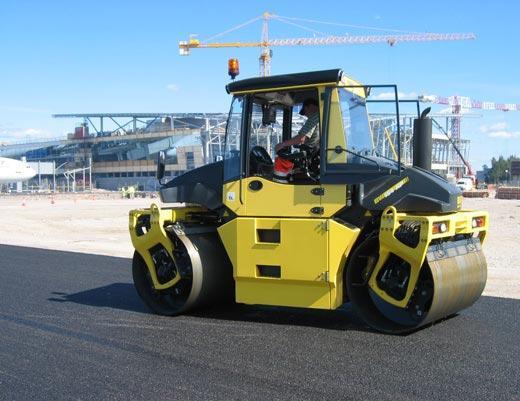

BW 154 AP Bomag BW 154 AP Specifications & Technical Data (2008—2018)

Weight: 7.1t – Transport length: 3.99m – Transport width: 1.665m – Transport height: 2.95m – Vibration: d – Drive: A

Rollers Tandem Vibration Rollers Bomag BW 154 AP
Rollers Tandem Vibration Rollers Bomag BW 154 AP
Rollers Tandem Vibration Rollers Bomag BW 154 AP
Rollers Tandem Vibration Rollers Bomag BW 154 AP
Rollers Tandem Vibration Rollers Bomag BW 154 AP
Rollers Tandem Vibration Rollers Bomag BW 154 AP
Rollers Tandem Vibration Rollers Bomag BW 154 AP
Rollers Tandem Vibration Rollers Bomag BW 154 AP

Visit Bomag live at

Technical specs - BW 154 AP Bomag

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.1 t
Transport length
3.99 m
Transport width
1.665 m
Transport height
2.95 m
Vibration
d
Drive
A
Steering
KL
Travel speed
10 km/h
Frequency
55 Hz
Roller width
1.5 m
Rollers Ø
0.735 m
Turning radius outside
2.95 m
Statical line load
23.7 kg/cm
Centrifugal force
69 kN
Model series
BW
Engine manuf.
Kubota
Engine type
V3307DI-T
Engine power
55.4 kW
Displacement
3331 l
Revolutions at max torque
1500 rpm
Max. torque
268 Nm
No. of cylinders
4
Emission level
Tier 3a

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Bomag BW 154 AP FAQ

When was the Bomag BW 154 AP manufactured?

The Bomag BW 154 AP was manufactured from 2008 to 2018.

How much does the Bomag BW 154 AP weigh?

The Bomag BW 154 AP weighs 7.1 tons.

What are the transport dimensions of the Bomag BW 154 AP?

The Bomag BW 154 AP has a transport length of 3.99 meters, a transport width of 1.67 meters, and a transport height of 2.95 meters.

What is the travel speed of the Bomag BW 154 AP?

The Bomag BW 154 AP has a travel speed of 10 km/h.

What type of drive system does the Bomag BW 154 AP have in its undercarriage?

The Bomag BW 154 AP has an all-wheel drive system in its undercarriage.

What are the maneuverability specifications of the Bomag BW 154 AP tandem vibration roller?

The Bomag BW 154 AP features articulated-frame steering and has an outside turning radius of 2.95 meters.

What are the compaction capabilities of the Bomag BW 154 AP tandem vibration roller?

The Bomag BW 154 AP features a double vibration system, operates at a frequency of 55 Hz, generates a centrifugal force of 69 kN, and has a statical line load of 23.7 kg/cm.

What are the roller specifications of the Bomag BW 154 AP tandem vibration roller?

The Bomag BW 154 AP has rollers that are 1.5 meters wide with a diameter of 0.735 meters.

How much is a Bomag BW 154 AP Tandem Vibration Roller (2008u20132018) worth?

The residual value of the Bomag BW 154 AP depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
