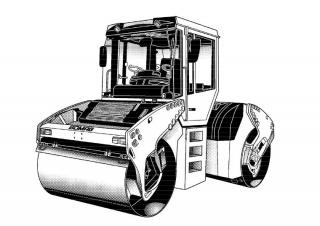

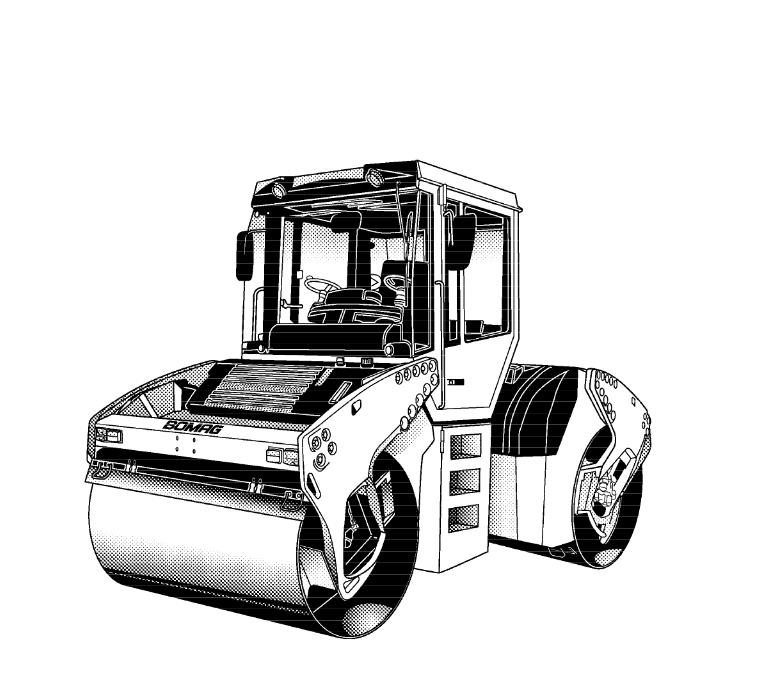

Bomag BW 151 AD-4 AM Specifications & Technical Data (2008-2013)

Technical specs - BW 151 AD-4 AM Bomag

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.2 t

Transport length: 4.61 m

Transport width: 1.84 m

Transport height: 3 m

Vibration: d

Drive: A

Steering: KL

Frequency: 45 Hz

Roller width: 1.68 m

Turning radius outside: 4.4 m

Model series: BW

Engine manuf.: Deutz

Engine type: TD2011

Engine power: 63 kW

Displacement: 3.619 l

Revolutions at max torque: 2500 rpm

More technical details, like: travel speed, rollers Ø, statical line load, centrifugal force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: No
Compression control: Yes
Aircondition: No

Download datasheets (PDF)

Bomag BW 151 AD-4 AM FAQ

When was the Bomag BW 151 AD-4 AM manufactured?

The Bomag BW 151 AD-4 AM was manufactured from 2008 to 2013.

How much does the Bomag BW 151 AD-4 AM weigh?

The Bomag BW 151 AD-4 AM weighs 9.2 tons.

What are the transport dimensions of the Bomag BW 151 AD-4 AM?

The Bomag BW 151 AD-4 AM has a transport length of 4.61 meters, a transport width of 1.84 meters, and a transport height of 3 meters.

What type of drive system does the Bomag BW 151 AD-4 AM have in its undercarriage?

The Bomag BW 151 AD-4 AM has an all-wheel drive system in its undercarriage.

What are the maneuverability specifications of the Bomag BW 151 AD-4 AM tandem vibration roller?

The Bomag BW 151 AD-4 AM has an outside turning radius of 4.4 meters and features articulated-frame steering.

What are the compaction capabilities of the Bomag BW 151 AD-4 AM?

The Bomag BW 151 AD-4 AM features a double vibration system operating at a frequency of 45 Hz.

What is the roller width of the Bomag BW 151 AD-4 AM tandem vibration roller?

The Bomag BW 151 AD-4 AM tandem vibration roller has a roller width of 1.68 meters.

How much is a Bomag BW 151 AD-4 AM Tandem Vibration Roller (2008u20132013) worth?

The residual value of the Bomag BW 151 AD-4 AM depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
