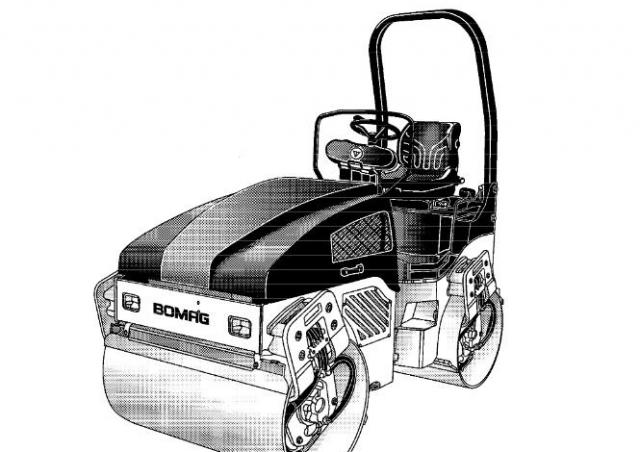

BW 100 AD-4 Bomag BW 100 AD-4 Specifications & Technical Data (2008—2012)

Model rating
7,00 / 10

Weight: 2.4t – Transport length: 2.48m – Transport width: 1.08m – Transport height: 2.49m – Vibration: d – Drive: A

Rollers Tandem Vibration Rollers Bomag BW 100 AD-4

Visit Bomag live at

Technical specs - BW 100 AD-4 Bomag

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.4 t
Transport length
2.48 m
Transport width
1.08 m
Transport height
2.49 m
Vibration
d
Drive
A
Steering
KL
Travel speed
12 km/h
Frequency
70 Hz
Roller width
1 m
Rollers Ø
0.7 m
Statical line load
11.8 kg/cm
Model series
BW
Engine manuf.
Kubota
Engine type
D1703M-E
Engine power
24.7 kW
Revolutions at max torque
2600 rpm
Emission level
III B

More technical details, like: turning radius outside, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Bomag BW 100 AD-4 FAQ

When was the Bomag BW 100 AD-4 manufactured?

The Bomag BW 100 AD-4 was manufactured from 2008 to 2012.

How much does the Bomag BW 100 AD-4 weigh?

The Bomag BW 100 AD-4 weighs 2.4 tons.

What are the transport dimensions of the Bomag BW 100 AD-4?

The Bomag BW 100 AD-4 has a transport length of 2.48 meters, a transport width of 1.08 meters, and a transport height of 2.49 meters.

What is the travel speed of the Bomag BW 100 AD-4?

The Bomag BW 100 AD-4 has a travel speed of 12 km/h.

What type of drive system does the Bomag BW 100 AD-4 have in its undercarriage?

The Bomag BW 100 AD-4 has an all-wheel drive system in its undercarriage.

What type of steering does the Bomag BW 100 AD-4 use for maneuverability?

The Bomag BW 100 AD-4 uses articulated-frame steering for maneuverability.

What are the compaction capabilities of the Bomag BW 100 AD-4 tandem vibration roller?

The Bomag BW 100 AD-4 features a double vibration system, operates at a frequency of 70 Hz, and has a statical line load of 11.8 kg/cm.

What are the roller specifications of the Bomag BW 100 AD-4 tandem vibration roller?

The Bomag BW 100 AD-4 has rollers that are 1 meter wide with a diameter of 0.7 meters.

How much is a Bomag BW 100 AD-4 Tandem Vibration Roller (2008u20132012) worth?

The residual value of the Bomag BW 100 AD-4 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
