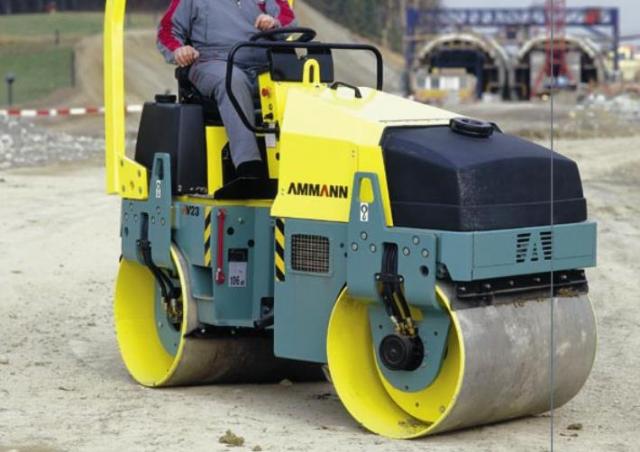

AV 23 Ammann AV 23 Specifications & Technical Data (1995—2006)
Technical specs - AV 23 Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.3 t
- Transport length
- 2.58 m
- Transport width
- 1.12 m
- Transport height
- 2.6 m
- Vibration
- e/d
- Steering
- KL
- Travel speed
- 10 km/h
- Frequency
- 63 Hz
- Roller width
- 1.04 m
- Rollers Ø
- 0.74 m
- Turning radius outside
- 3.35 m
- Statical line load
- 12.5 kg/cm
- Model series
- AV
- Engine manuf.
- Yanmar
- Engine type
- 3TNE88A
- Engine power
- 21.6 kW
- Revolutions at max torque
- 2500 rpm
More technical details, like: drive, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
