ARX 90 T 4f Ammann ARX 90 T 4f Specifications & Technical Data (2021—2026)

Weight: 9.72t – Transport length: 4.72m – Transport width: 1.8m – Transport height: 3m – Vibration: d – Drive: A

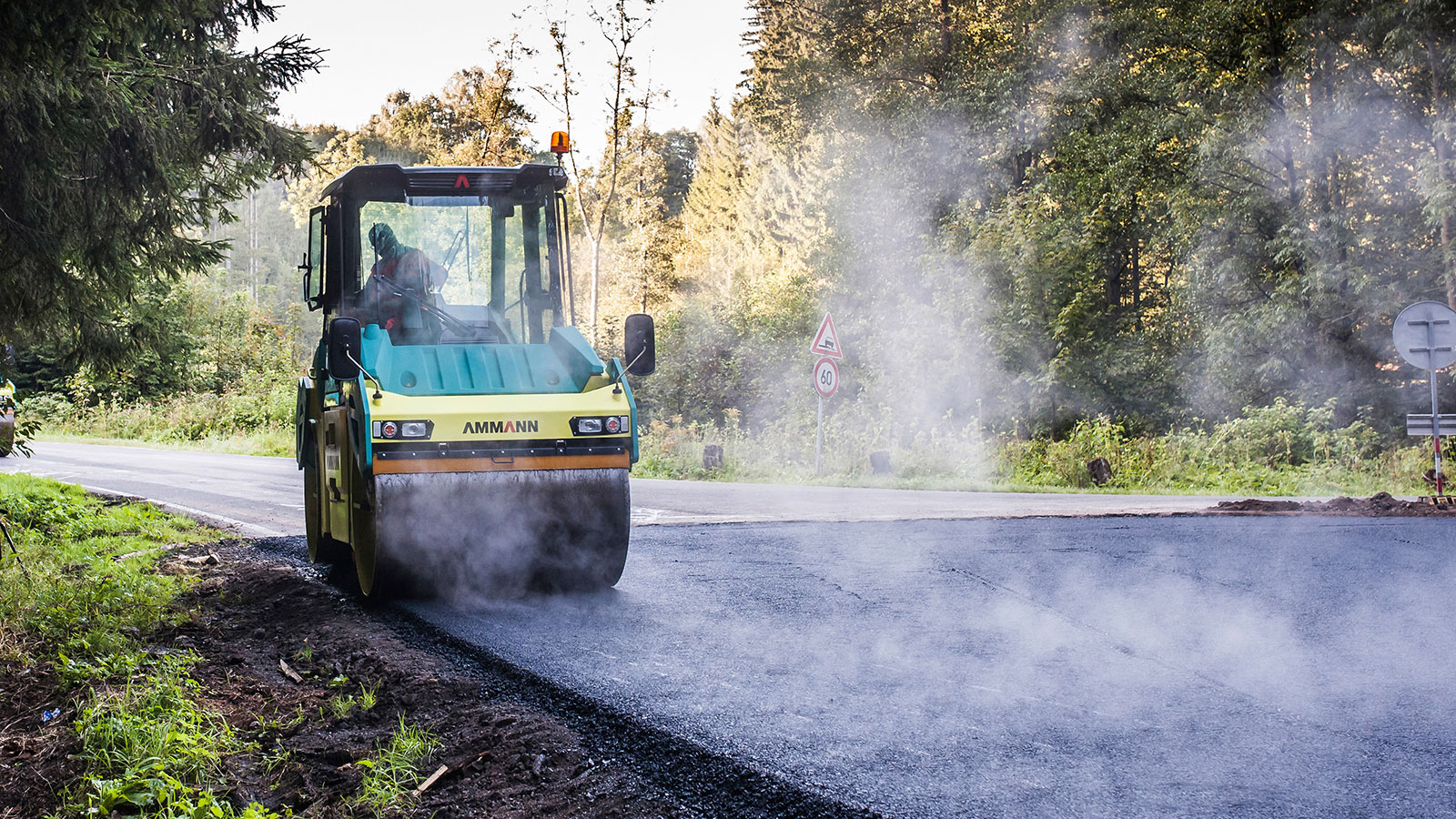

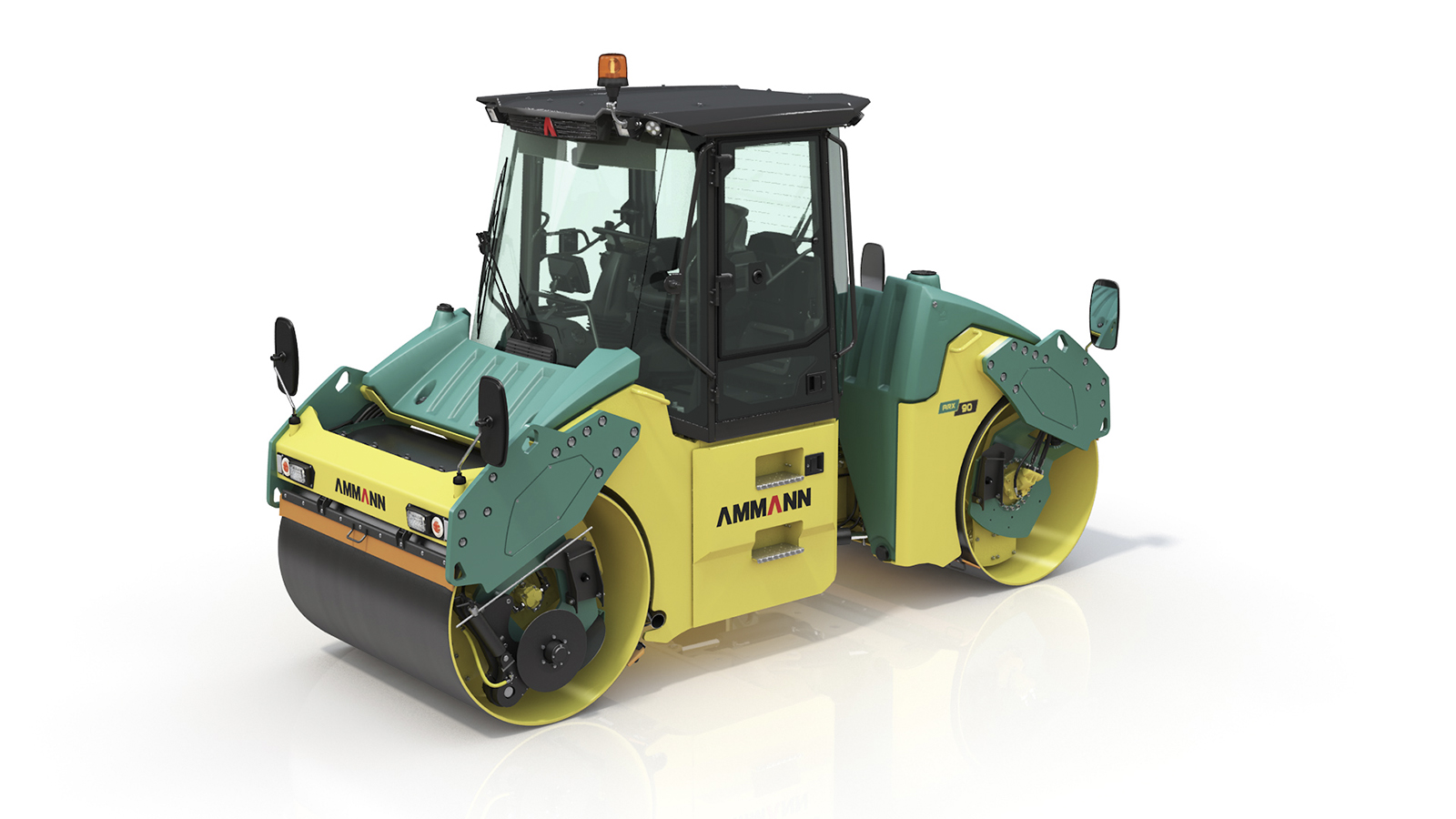

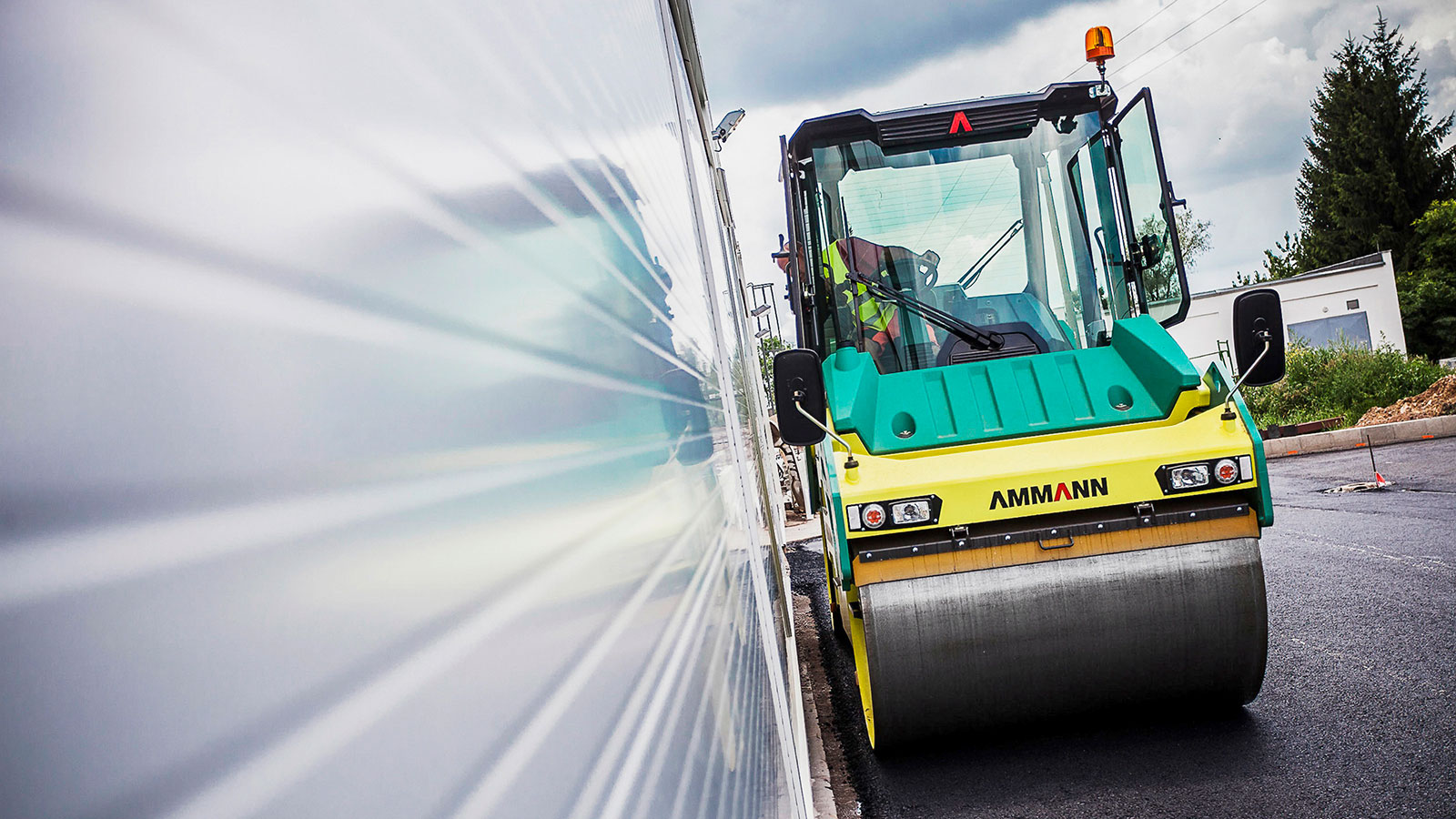

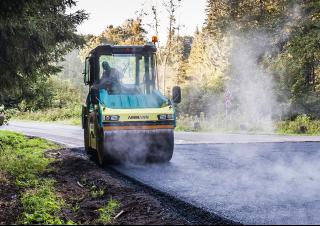

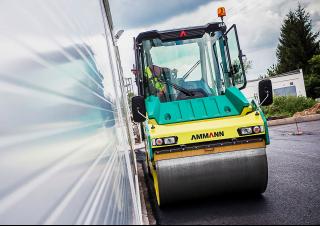

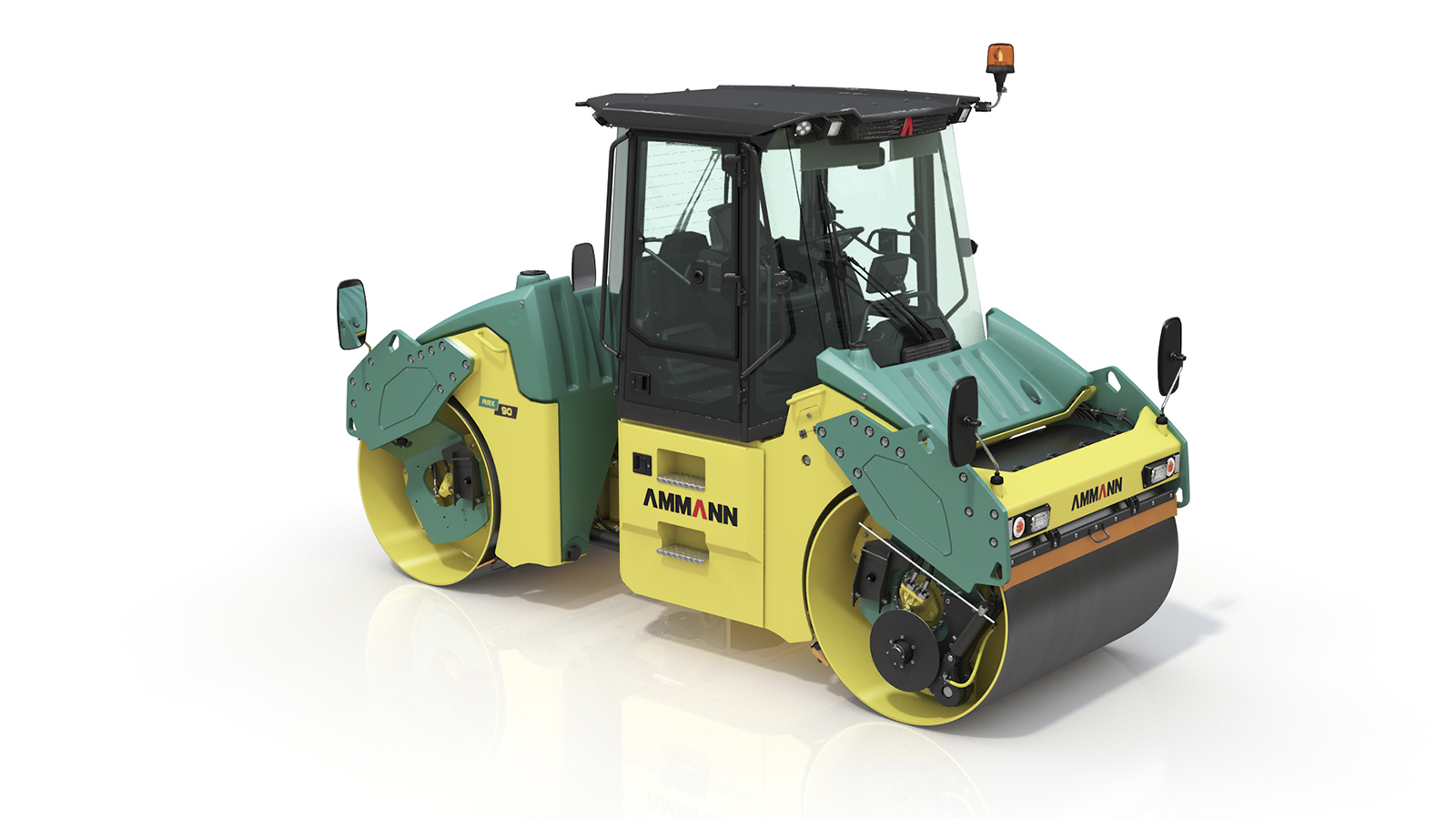

Rollers Tandem Vibration Rollers Ammann ARX 90 T 4f

ARX 90 T 4f

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - ARX 90 T 4f Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.72 t

Transport length: 4.72 m

Transport width: 1.8 m

Transport height: 3 m

Vibration: d

Drive: A

Steering: KL

Travel speed: 10.5 km/h

Frequency: 54 Hz

Roller width: 1.68 m

Rollers Ø: 1.22 m

Statical line load: 29.4 kg/cm

Centrifugal force: 84 kN

Model series: ARX

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 74 kW

Displacement: 3.6 l

Revolutions at max torque: 1600 rpm

No. of cylinders: 4

Emission level: V/Tier 4 f

More technical details, like: turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: No
Compression control: Yes
Aircondition: Yes

Download datasheets (PDF)

Ammann ARX 90 T 4f FAQ

When was the Ammann ARX 90 T 4f manufactured?

The Ammann ARX 90 T 4f was first produced in 2021.

How much does the Ammann ARX 90 T 4f weigh?

The Ammann ARX 90 T 4f weighs 9.72 tons.

What are the transport dimensions of the Ammann ARX 90 T 4f tandem vibration roller?

The Ammann ARX 90 T 4f has a transport length of 4.72 meters, a transport width of 1.8 meters, and a transport height of 3 meters.

What is the travel speed of the Ammann ARX 90 T 4f tandem vibration roller?

The Ammann ARX 90 T 4f has a travel speed of 10.5 km/h.

What type of drive system does the Ammann ARX 90 T 4f have in its undercarriage?

The Ammann ARX 90 T 4f has an all-wheel drive system in its undercarriage.

What type of steering system does the Ammann ARX 90 T 4f use for maneuverability?

The Ammann ARX 90 T 4f uses an articulated-frame steering system for maneuverability.

What are the compaction capabilities of the Ammann ARX 90 T 4f tandem vibration roller?

The Ammann ARX 90 T 4f features a double vibration system operating at a frequency of 54 Hz, generates a centrifugal force of 84 kN, and has a statical line load of 29.4 kg/cm.

What are the roller specifications of the Ammann ARX 90 T 4f tandem vibration roller?

The Ammann ARX 90 T 4f has rollers that are 1.68 meters wide with a diameter of 1.22 meters.
