ARX 36-2 Ammann ARX 36-2 Specifications & Technical Data (2021—2026)

Weight: 3.785t – Transport length: 3m – Transport width: 1.385m – Transport height: 2.15m – Vibration: d – Drive: A

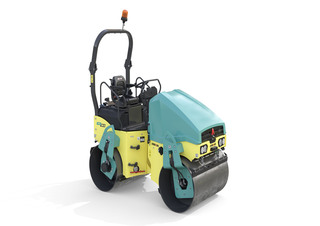

Rollers Tandem Vibration Rollers Ammann ARX 36-2

ARX 36-2

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - ARX 36-2 Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.785 t

Transport length: 3 m

Transport width: 1.385 m

Transport height: 2.15 m

Vibration: d

Drive: A

Steering: KL

Travel speed: 10 km/h

Frequency: 55 Hz

Roller width: 1.3 m

Rollers Ø: 0.85 m

Statical line load: 16.5 kg/cm

Centrifugal force: 51.9 kN

Model series: ARX

Engine manuf.: Kubota

Engine type: D1803-CRT

Engine power: 32.8 kW

Revolutions at max torque: 2400 rpm

No. of cylinders: 3

Emission level: EU V

More technical details, like: turning radius outside, dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: Yes
Oscillation: No
Compression control: Yes
Aircondition: No

Download datasheets (PDF)

Ammann ARX 36-2 FAQ

When was the Ammann ARX 36-2 manufactured?

The Ammann ARX 36-2 was first produced in 2021.

How much does the Ammann ARX 36-2 weigh?

The Ammann ARX 36-2 weighs 3.785 tons.

What are the transport dimensions of the Ammann ARX 36-2 tandem vibration roller?

The Ammann ARX 36-2 has a transport length of 3 meters, a transport width of 1.385 meters, and a transport height of 2.15 meters.

What is the travel speed of the Ammann ARX 36-2 tandem vibration roller?

The Ammann ARX 36-2 tandem vibration roller has a travel speed of 10 km/h.

What type of drive system does the Ammann ARX 36-2 have in its undercarriage?

The Ammann ARX 36-2 has an all-wheel drive system in its undercarriage.

What type of steering system does the Ammann ARX 36-2 use?

The Ammann ARX 36-2 uses an articulated-frame steering system for maneuverability.

What are the compaction capabilities of the Ammann ARX 36-2 tandem vibration roller?

The Ammann ARX 36-2 features a double vibration system, operates at a frequency of 55 Hz, generates a centrifugal force of 51.9 kN, and has a statical line load of 16.5 kg/cm.

What are the roller specifications of the Ammann ARX 36-2 tandem vibration roller?

The Ammann ARX 36-2 has rollers that are 1.3 meters wide with a diameter of 0.85 meters.

How much is a Ammann ARX 36-2 Tandem Vibration Roller (2021u20132025) worth?

The residual value of the Ammann ARX 36-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
