Lectura specs Construction machinery Rollers Tandem Vibration Rollers Rollers Ammann Tandem Vibration Rollers Ammann Ammann ARX 26-2 specifications

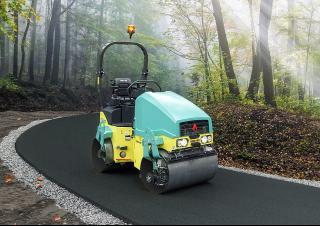

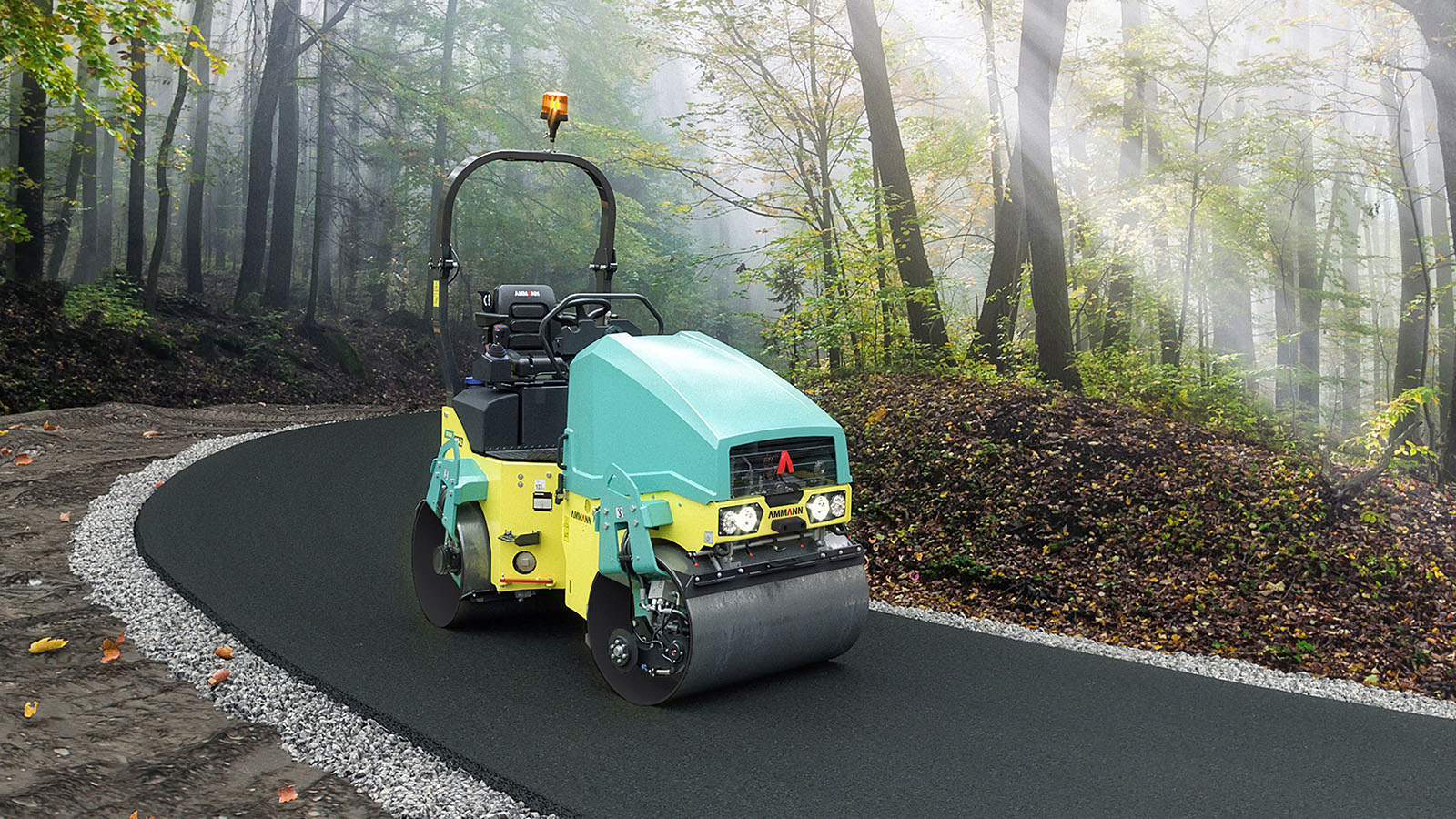

Ammann ARX 26-2 Specifications & Technical Data (2019-2024)

Rate this machine now!

Weight: 2.515t – Transport length: 2.585m – Transport width: 1.35m – Transport height: 1.935m – Vibration: d – Drive: A

Technical specs - ARX 26-2 Ammann


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 2.515 t
  • Transport length 2.585 m
  • Transport width 1.35 m
  • Transport height 1.935 m
  • Vibration d
  • Drive A
  • Steering KL
  • Travel speed 11 km/h
  • Frequency 58/66 Hz
  • Roller width 1.2 m
  • Rollers Ø 0.695 m
  • Statical line load 11 kg/cm
  • Centrifugal force 46.5 kN
  • Model series ARX
  • Engine manuf. Kubota
  • Engine type D1803-CR
  • Engine power 25 kW
  • No. of cylinders 3
  • Emission level EU V

More technical details, like: average fuel consumption, fuel consumption range (min - max), turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

  • Diesel particulate filter
  • Oscillation
  • Compression control
  • Aircondition
