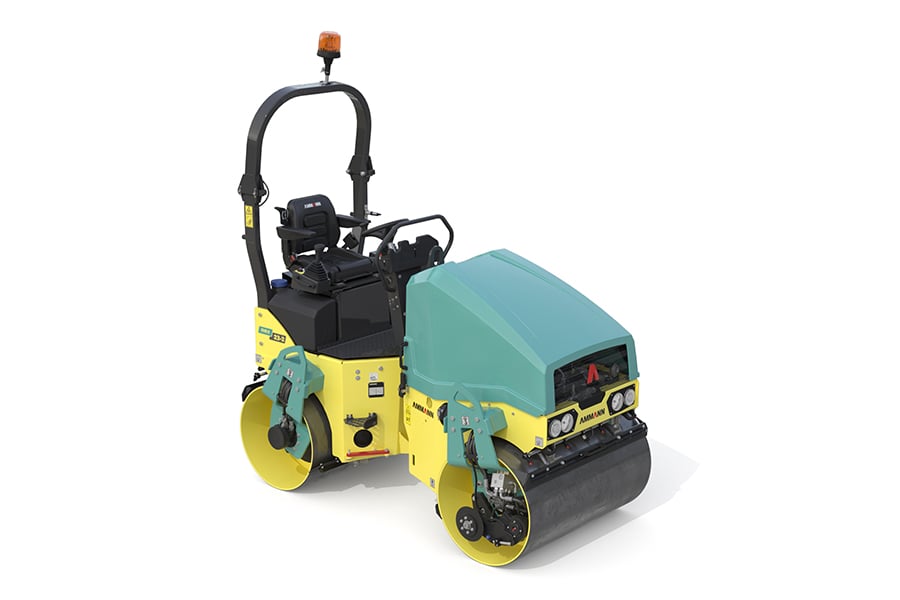

ARX 23-2 Ammann ARX 23-2 Specifications & Technical Data (2019—2026)
.jpeg)
Technical specs - ARX 23-2 Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.23 t
- Transport length
- 2.585 m
- Transport width
- 1.35 m
- Transport height
- 1.93 m
- Vibration
- d
- Drive
- A
- Steering
- KL
- Travel speed
- 11 km/h
- Frequency
- 66 Hz
- Roller width
- 1 m
- Rollers Ø
- 0.695 m
- Statical line load
- 11.6 kg/cm
- Centrifugal force
- 39.9 kN
- Model series
- ARX
- Engine manuf.
- Kubota
- Engine type
- D1803-CR
- Engine power
- 25 kW
- No. of cylinders
- 3
- Emission level
- EU V
More technical details, like: turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
No
Ammann ARX 23-2 FAQ
How much does the Ammann ARX 23-2 weigh?
What are the transport dimensions of the Ammann ARX 23-2 tandem vibration roller?
What is the travel speed of the Ammann ARX 23-2 tandem vibration roller?
What type of drive does the undercarriage of the Ammann ARX 23-2 have?
What type of steering does the Ammann ARX 23-2 have?
What are the compaction capabilities of the Ammann ARX 23-2 tandem vibration roller?
What are the roller specifications of the Ammann ARX 23-2 tandem vibration roller?
How much is a Ammann ARX 23-2 Tandem Vibration Roller (2019u20132025) worth?
Machine inspection
Ask for inspection of your Ammann ARX 23-2 from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Ammann ARX 23-2 with similar Tandem Vibration Rollers
.jpeg)

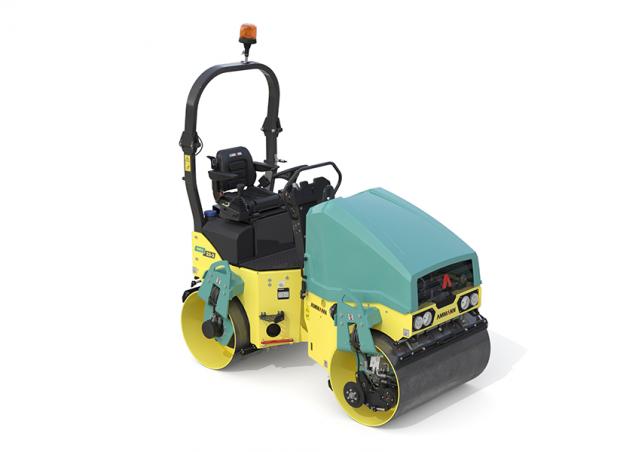

Ammann ARX 23-2
