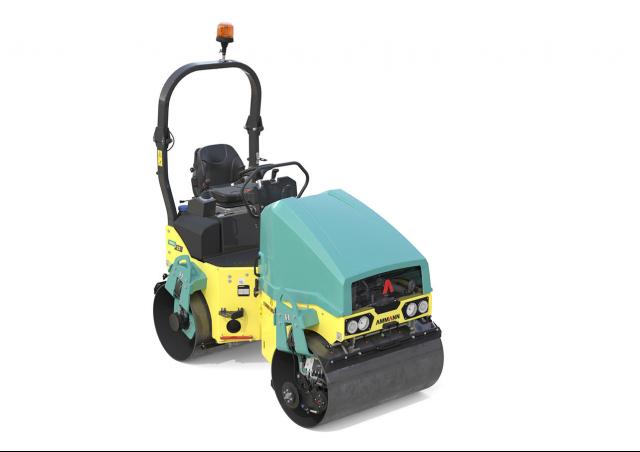

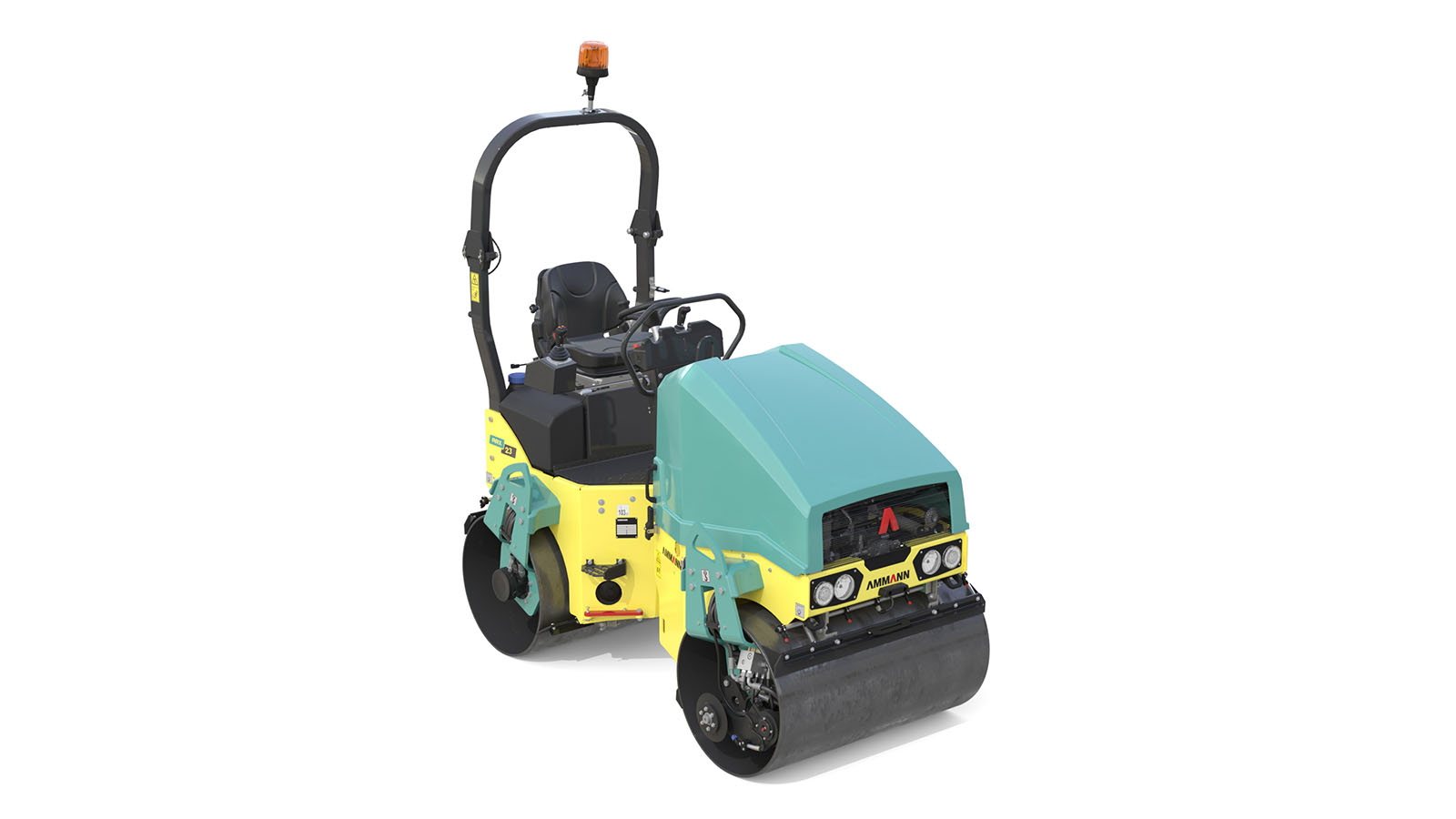

ARX 23.1-2 Ammann ARX 23.1-2 Specifications & Technical Data (2021—2026)
.jpg)
Technical specs - ARX 23.1-2 Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.26 t
- Transport length
- 2.585 m
- Transport width
- 1.13 m
- Transport height
- 1.935 m
- Vibration
- d
- Drive
- A
- Steering
- KL
- Travel speed
- 11 km/h
- Frequency
- 66 Hz
- Roller width
- 1 m
- Rollers Ø
- 0.695 m
- Statical line load
- 10.9 kg/cm
- Centrifugal force
- 36.9 kN
- Model series
- ARX
- Engine manuf.
- Yanmar
- Engine type
- 3TNV88F-EPAMM
- Engine power
- 18.5 kW
- No. of cylinders
- 3
- Emission level
- EU V
More technical details, like: turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
No
Ammann ARX 23.1-2 FAQ
How much does the Ammann ARX 23.1-2 weigh?
What are the transport dimensions of the Ammann ARX 23.1-2 tandem vibration roller?
What is the travel speed of the Ammann ARX 23.1-2 tandem vibration roller?
What type of drive system does the Ammann ARX 23.1-2 have in its undercarriage?
What type of steering does the Ammann ARX 23.1-2 use for maneuverability?
What are the compaction capabilities of the Ammann ARX 23.1-2 tandem vibration roller?
What are the roller specifications of the Ammann ARX 23.1-2 tandem vibration roller?
How much is a Ammann ARX 23.1-2 Tandem Vibration Roller (2021u20132025) worth?
