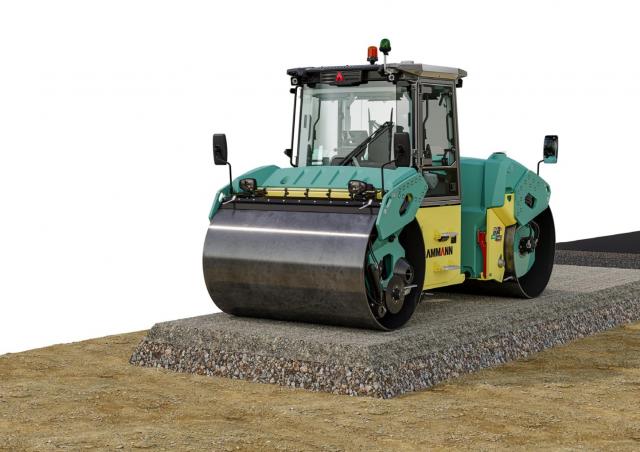

ARX 160 Ammann ARX 160 Specifications & Technical Data (2022—2026)
Technical specs - ARX 160 Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 14 t
- Transport length
- 5.15 m
- Transport width
- 2.26 m
- Transport height
- 3 m
- Vibration
- d
- Drive
- A
- Steering
- KL
- Travel speed
- 12 km/h
- Frequency
- 50 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.4 m
- Statical line load
- 65.7 kg/cm
- Model series
- ARX
- Engine manuf.
- Perkins
- Engine type
- 904J
- Engine power
- 100 kW
- Displacement
- 3.6 l
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: turning radius outside, centrifugal force, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Oscillation
-
Yes
- Compression control
-
Yes
- Aircondition
-
Yes
Ammann ARX 160 FAQ
How much does the Ammann ARX 160 weigh?
What are the transport dimensions of the Ammann ARX 160 tandem vibration roller?
What is the travel speed of the Ammann ARX 160 tandem vibration roller?
What type of drive system does the Ammann ARX 160 have in its undercarriage?
What type of steering does the Ammann ARX 160 use for maneuverability?
What are the compaction capabilities of the Ammann ARX 160 tandem vibration roller?
What are the roller specifications of the Ammann ARX 160 tandem vibration roller?
How much is a Ammann ARX 160 Tandem Vibration Roller (2022u20132025) worth?
