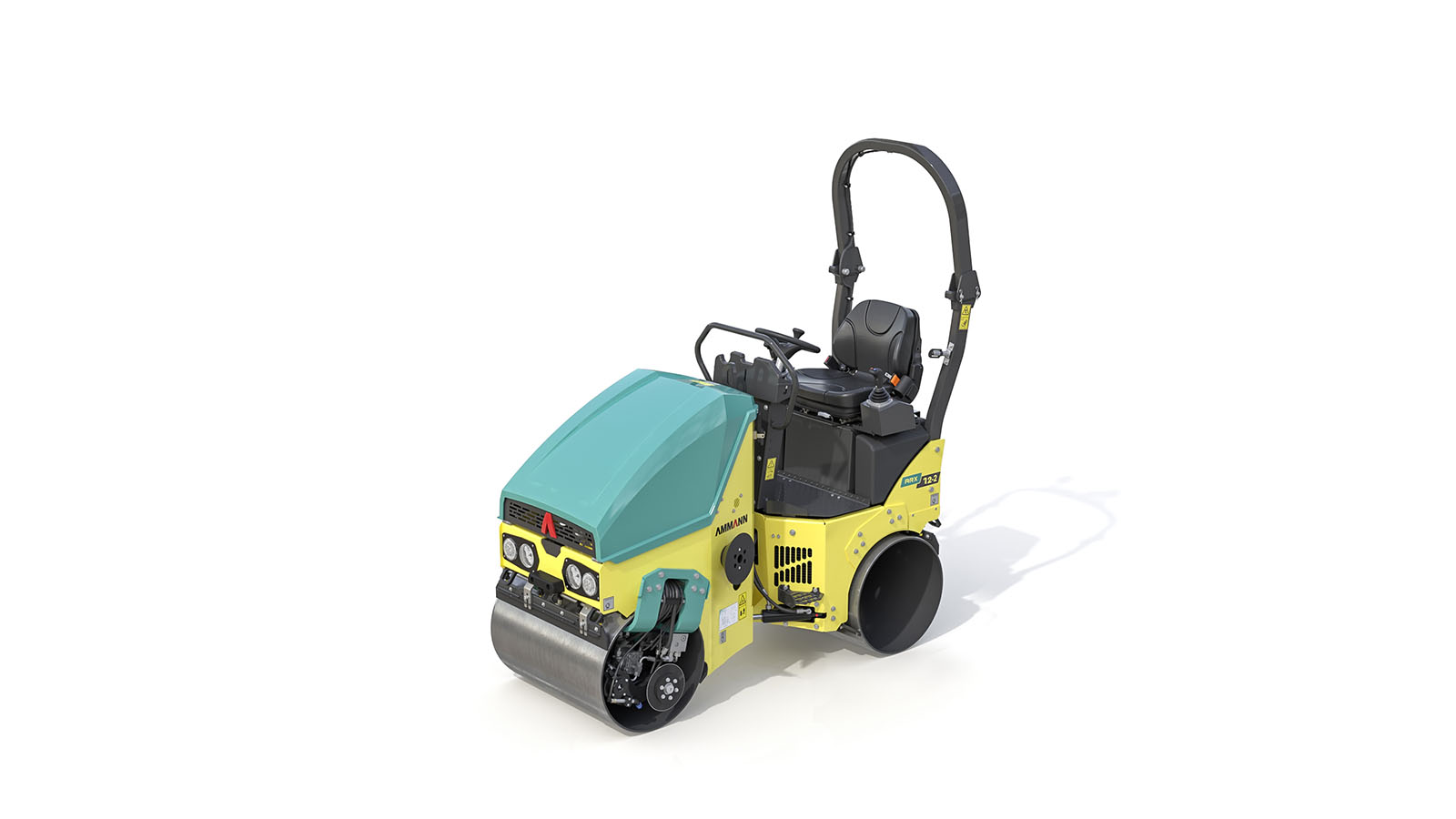

ARX 12-2 Ammann ARX 12-2 Specifications & Technical Data (2013—2020)
.jpg)
.jpg)
Technical specs - ARX 12-2 Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.23 t
- Transport length
- 2.5 m
- Transport width
- 1.13 m
- Transport height
- 1.93 m
- Vibration
- d
- Drive
- A
- Steering
- KL
- Travel speed
- 11 km/h
- Frequency
- 66 Hz
- Roller width
- 1.05 m
- Rollers Ø
- 0.695 m
- Statical line load
- 10.8 kg/cm
- Centrifugal force
- 22 kN
- Model series
- Light Tandem Rollers
- Engine manuf.
- Kubota
- Engine type
- D1803-CR-E4B
- Engine power
- 25 kW
- Revolutions at max torque
- 2100 rpm
- No. of cylinders
- 3
- Emission level
- Tier 4f
More technical details, like: turning radius outside, dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.

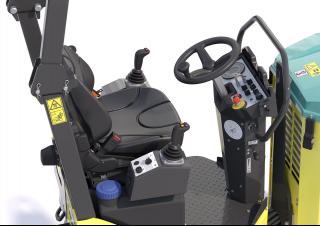

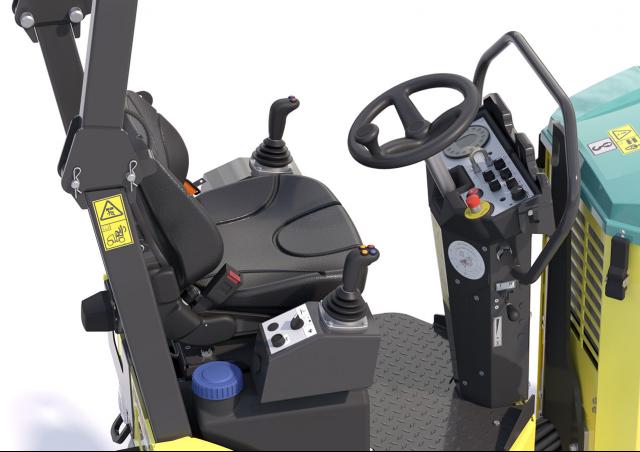

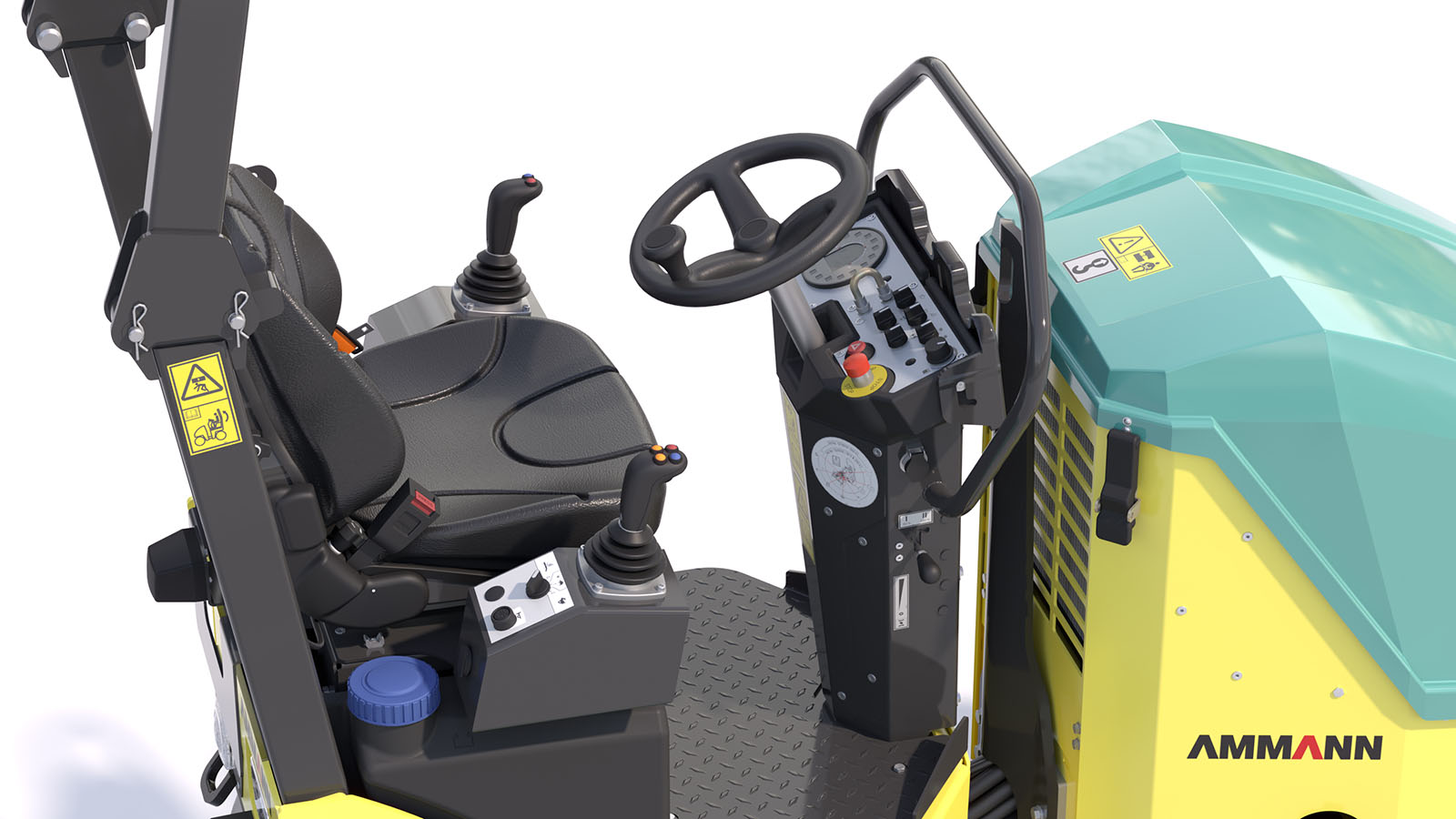

Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
