ARX 110 T 4f Ammann ARX 110 T 4f Specifications & Technical Data (2013—2018)

Weight: 10.4t – Transport length: 4.72m – Transport width: 1.8m – Transport height: 3m – Vibration: d – Drive: A

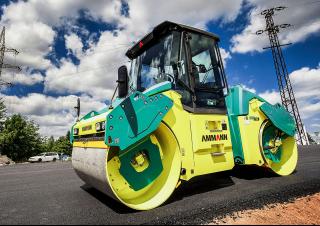

Rollers Tandem Vibration Rollers Ammann ARX 110 T 4f

ARX 110 T 4f

Years of manufacture: 2013—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - ARX 110 T 4f Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 10.4 t

Transport length: 4.72 m

Transport width: 1.8 m

Transport height: 3 m

Vibration: d

Drive: A

Steering: KL

Travel speed: 10.5 km/h

Frequency: 52 Hz

Roller width: 1.68 m

Rollers Ø: 1.22 m

Statical line load: 30.9 kg/cm

Model series: ARX

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 74.4 kW

Displacement: 3.6 l

Revolutions at max torque: 1300 rpm

Max. torque: 390 Nm

No. of cylinders: 4

Emission level: 4

More technical details, like: turning radius outside, centrifugal force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: Yes
Compression control: Yes
Aircondition: Yes

Download datasheets (PDF)

Ammann ARX 110 T 4f FAQ

When was the Ammann ARX 110 T 4f manufactured?

The Ammann ARX 110 T 4f was manufactured from 2013 to 2018.

How much does the Ammann ARX 110 T 4f weigh?

The Ammann ARX 110 T 4f weighs 10.4 tons.

What are the transport dimensions of the Ammann ARX 110 T 4f tandem vibration roller?

The Ammann ARX 110 T 4f has a transport length of 4.72 meters, a transport width of 1.8 meters, and a transport height of 3 meters.

What is the travel speed of the Ammann ARX 110 T 4f tandem vibration roller?

The Ammann ARX 110 T 4f has a travel speed of 10.5 km/h.

What type of drive system does the Ammann ARX 110 T 4f use for its undercarriage?

The Ammann ARX 110 T 4f uses an all-wheel drive system for its undercarriage.

What type of steering system does the Ammann ARX 110 T 4f use for maneuverability?

The Ammann ARX 110 T 4f uses an articulated-frame steering system for maneuverability.

What are the compaction capabilities of the Ammann ARX 110 T 4f tandem vibration roller?

The Ammann ARX 110 T 4f features a double vibration system operating at a frequency of 52 Hz and has a statical line load of 30.9 kg/cm.

What are the roller specifications of the Ammann ARX 110 T 4f tandem vibration roller?

The Ammann ARX 110 T 4f has rollers that are 1.68 meters wide with a diameter of 1.22 meters.

How much is a Ammann ARX 110 T 4f Tandem Vibration Roller (2013u20132018) worth?

The residual value of the Ammann ARX 110 T 4f depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
