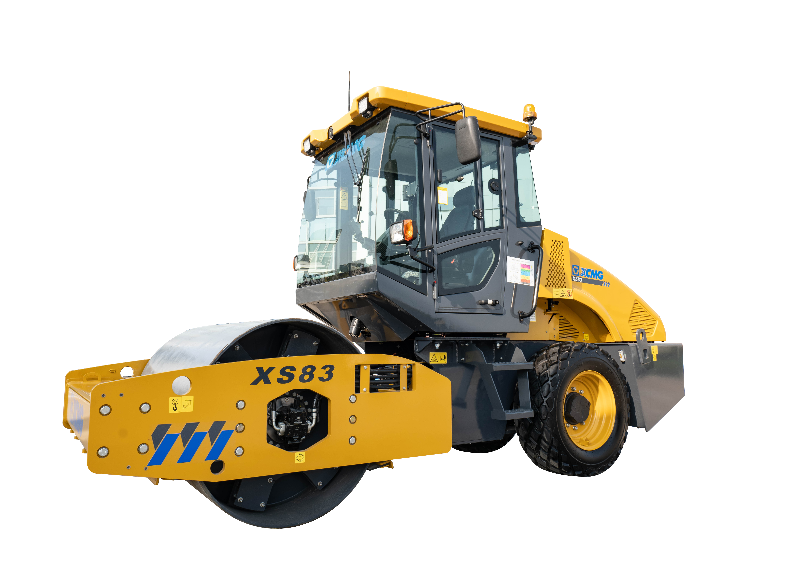

XS83 XCMG XS83 Specifications & Technical Data (2025—2026)
.png)
Visit XCMG live at
Technical specs - XS83 XCMG
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 8.73 t
- Transport length
- 5.355 m
- Transport width
- 1.86 m
- Transport height
- 3.04 m
- Travel speed
- 11 km/h
- Frequency
- 30/35 Hz
- Roller width
- 1.68 m
- Model series
- XS
- Engine manuf.
- Cummins
- Engine type
- k.A.
- Engine power
- 74 kW
- Revolutions at max torque
- 2200 rpm
- Emission level
- Tier 4F
More technical details, like: vibration, drive, rollers Ø, amplitude, turning radius outside, turning radius inside, statical line load, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Events
Visit XCMG live at
Machine inspection
Ask for inspection of your XCMG XS83 from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare XCMG XS83 with similar Single-drum Rollers
.png)

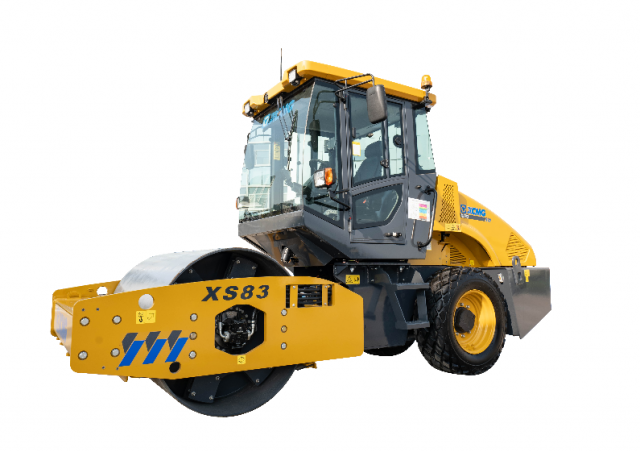

XCMG XS83
