XS395 XCMG XS395 Specifications & Technical Data (2021—2025)

Weight: 38.34t – Transport length: 7.59m – Transport width: 3.04m – Transport height: 3.48m – Travel speed: 10km/h – Frequency: 31Hz

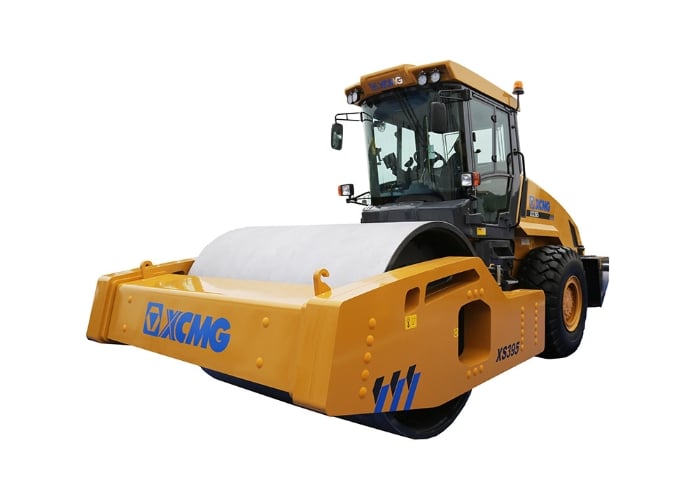

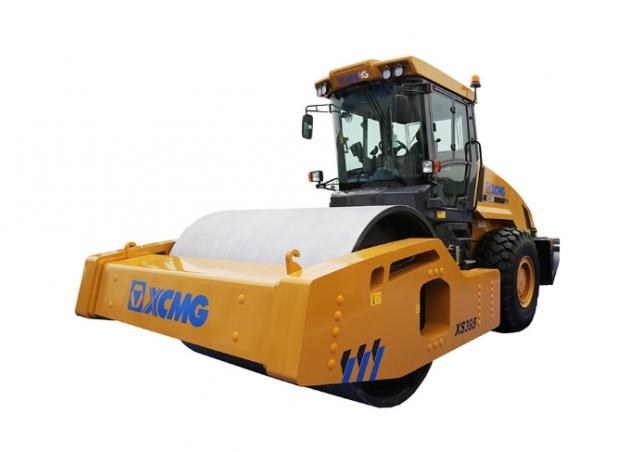

Rollers Single-drum Rollers XCMG XS395

Visit XCMG live at

Technical specs - XS395 XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
38.34 t
Transport length
7.59 m
Transport width
3.04 m
Transport height
3.48 m
Travel speed
10 km/h
Frequency
31 Hz
Centrifugal force
800 kN
Model series
XS
Engine manuf.
Weichai
Engine type
WP12G375
Engine power
276 kW

More technical details, like: vibration, drive, roller width, rollers Ø, amplitude, turning radius outside, turning radius inside, statical line load, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: vibration, drive, roller width, rollers Ø, amplitude, turning radius outside, turning radius inside, statical line load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No

XCMG XS395 FAQ

When was the XCMG XS395 manufactured?

The XCMG XS395 was first produced in 2021.

How much does the XCMG XS395 weigh?

The XCMG XS395 weighs 38.34 tons.

What are the transport dimensions of the XCMG XS395 single-drum roller?

The XCMG XS395 has a transport length of 7.59 meters, a transport width of 3.04 meters, and a transport height of 3.48 meters.

What is the travel speed of the XCMG XS395 single-drum roller?

The XCMG XS395 has a travel speed of 10 km/h.

What are the compaction capabilities of the XCMG XS395 single-drum roller?

The XCMG XS395 operates at a vibration frequency of 31 Hz and generates a centrifugal force of 800 kN for compaction.

How much is a XCMG XS395 Single-drum Roller (2021u20132025) worth?

The residual value of the XCMG XS395 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
