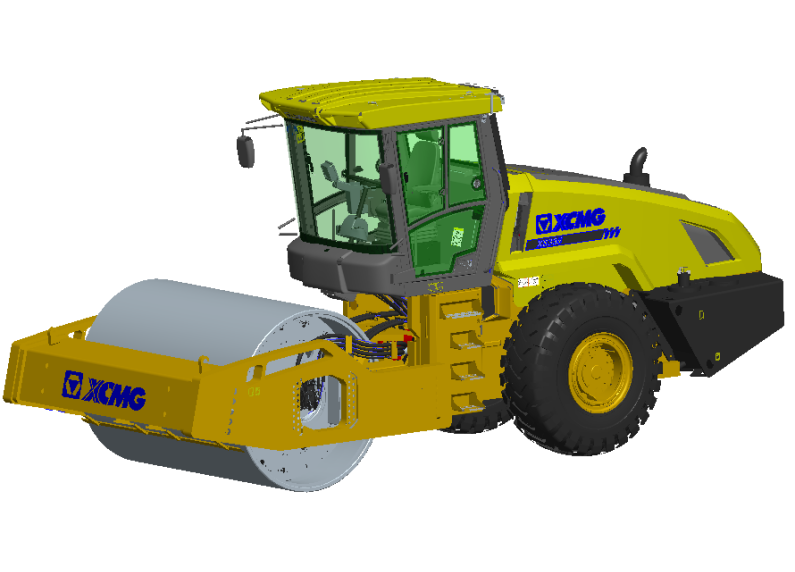

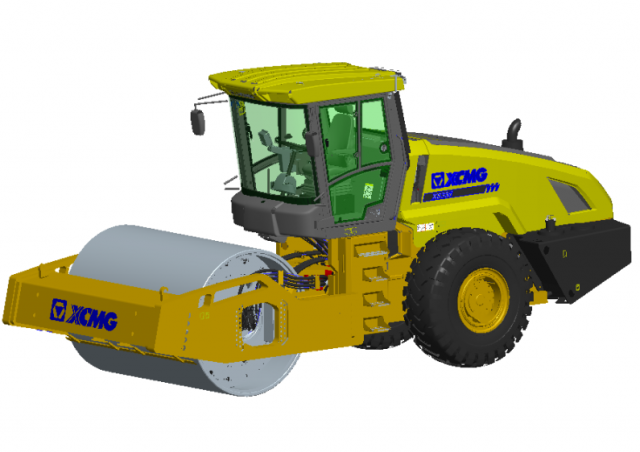

XS365M XCMG XS365M Specifications & Technical Data (2026—2026)

Weight: 36t – Transport length: 7.592m – Transport width: 2.9m – Transport height: 3.478m – Travel speed: 10km/h – Frequency: 26/31Hz

Rollers Single-drum Rollers XCMG XS365M

Visit XCMG live at

Technical specs - XS365M XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36 t
Transport length
7.592 m
Transport width
2.9 m
Transport height
3.478 m
Travel speed
10 km/h
Frequency
26/31 Hz
Roller width
2.4 m
Model series
XS
Engine manuf.
Weichai
Engine type
WD12G375E211
Engine power
276 kW
Displacement
11.6 l
Revolutions at max torque
2200 rpm
Max. torque
1500 Nm
Emission level
EU III

More technical details, like: vibration, drive, rollers Ø, amplitude, turning radius outside, turning radius inside, statical line load, centrifugal force, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No
