XS335 XCMG XS335 Specifications & Technical Data (2025—2026)

Weight: 33.5t – Transport length: 7.592m – Transport width: 2.8m – Transport height: 3.476m – Travel speed: 10.8km/h – Frequency: 26/31Hz

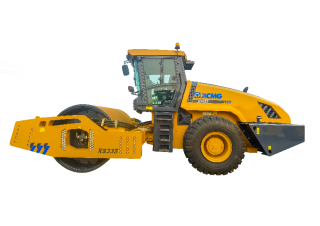

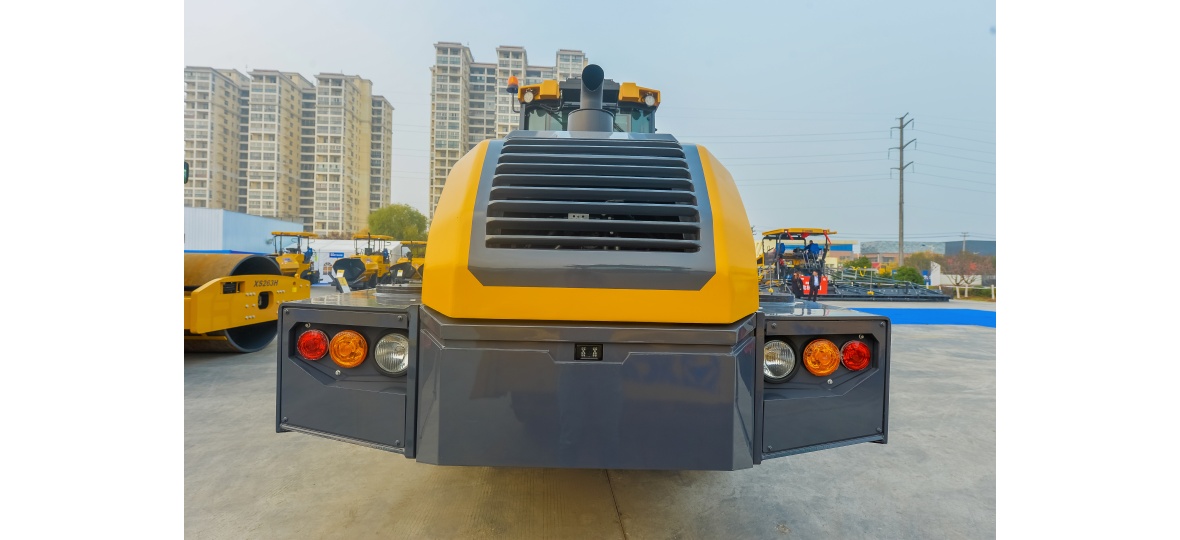

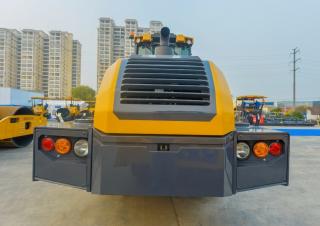

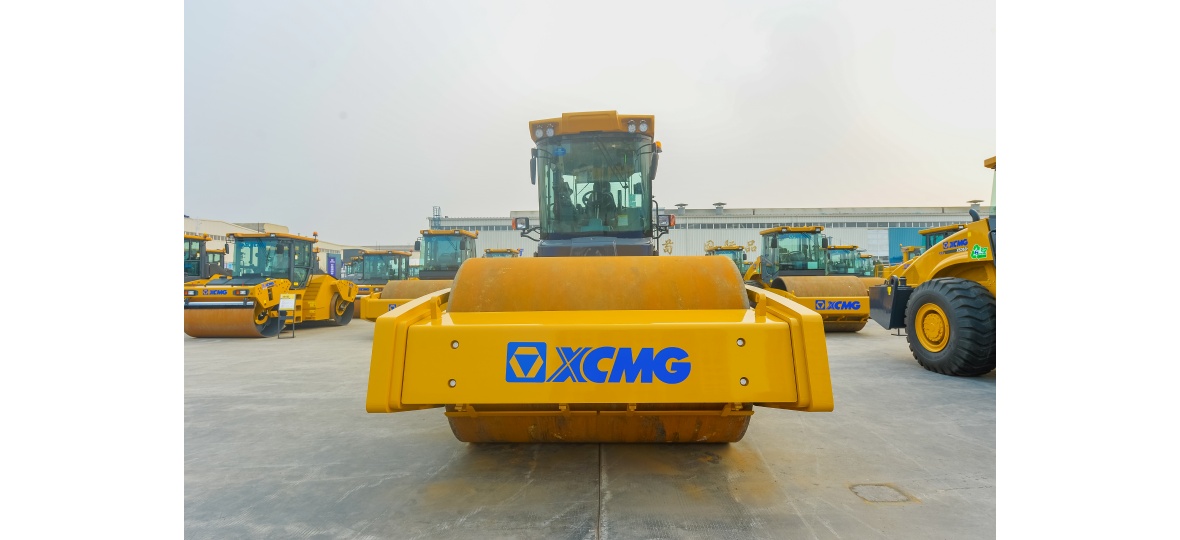

Rollers Single-drum Rollers XCMG XS335
Rollers Single-drum Rollers XCMG XS335
Rollers Single-drum Rollers XCMG XS335
Rollers Single-drum Rollers XCMG XS335
Rollers Single-drum Rollers XCMG XS335
Rollers Single-drum Rollers XCMG XS335
Rollers Single-drum Rollers XCMG XS335
Rollers Single-drum Rollers XCMG XS335
Rollers Single-drum Rollers XCMG XS335
Rollers Single-drum Rollers XCMG XS335

Visit XCMG live at

Technical specs - XS335 XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
33.5 t
Transport length
7.592 m
Transport width
2.8 m
Transport height
3.476 m
Travel speed
10.8 km/h
Frequency
26/31 Hz
Roller width
2.4 m
Model series
XS
Engine manuf.
Weichai
Engine type
k.A.
Engine power
276 kW
Revolutions at max torque
2200 rpm
No. of cylinders
6
Emission level
III

More technical details, like: vibration, drive, rollers Ø, amplitude, turning radius outside, turning radius inside, statical line load, centrifugal force, dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No
