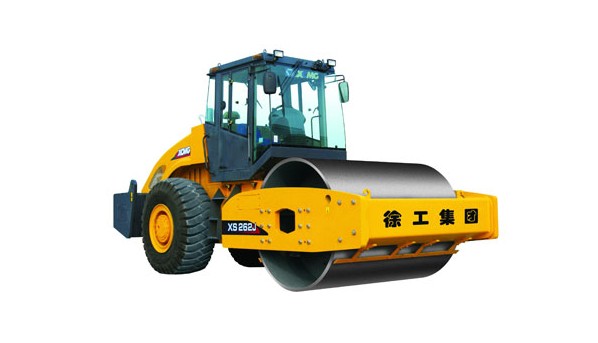

XCMG XS262J Specifications & Technical Data (2017-2020)

Technical specs - XS262J XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 26 t

Travel speed: 8.1 km/h

Frequency: 32 Hz

Roller width: 2.17 m

Rollers Ø: 1.6 m

Amplitude: 1.9 mm

Turning radius outside: 6.8 m

Statical line load: 59 kg/cm

Model series: XS

Engine manuf.: Shanghai Diesel Engine (SDEC)

Engine type: SC8D190.2G2

Engine power: 140 kW

More technical details, like: transport length, transport width, transport height, vibration, drive, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: transport length, transport width, transport height, vibration, drive, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: No
Oscillation: No
Compression control: No
Aircondition: No

XCMG XS262J FAQ

When was the XCMG XS262J manufactured?

The XCMG XS262J was manufactured from 2017 to 2020.

How much does the XCMG XS262J single-drum roller weigh?

The XCMG XS262J weighs 26 tons.

What is the travel speed of the XCMG XS262J single-drum roller?

The XCMG XS262J has a travel speed of 8.1 km/h.

What is the turning radius of the XCMG XS262J single-drum roller?

The XCMG XS262J has an outside turning radius of 6.8 meters.

What are the compaction capabilities of the XCMG XS262J single-drum roller?

The XCMG XS262J operates at a vibration frequency of 32 Hz, has an amplitude of 1.9 mm, and a statical line load of 59 kg/cm.

What are the roller specifications of the XCMG XS262J single-drum roller?

The XCMG XS262J has a roller width of 2.17 meters and a roller diameter of 1.6 meters.

How much is a XCMG XS262J Single-drum Roller (2017u20132020) worth?

The residual value of the XCMG XS262J depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
