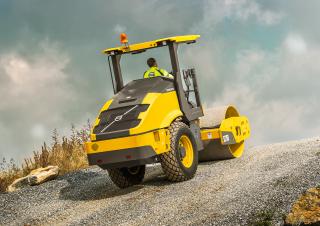

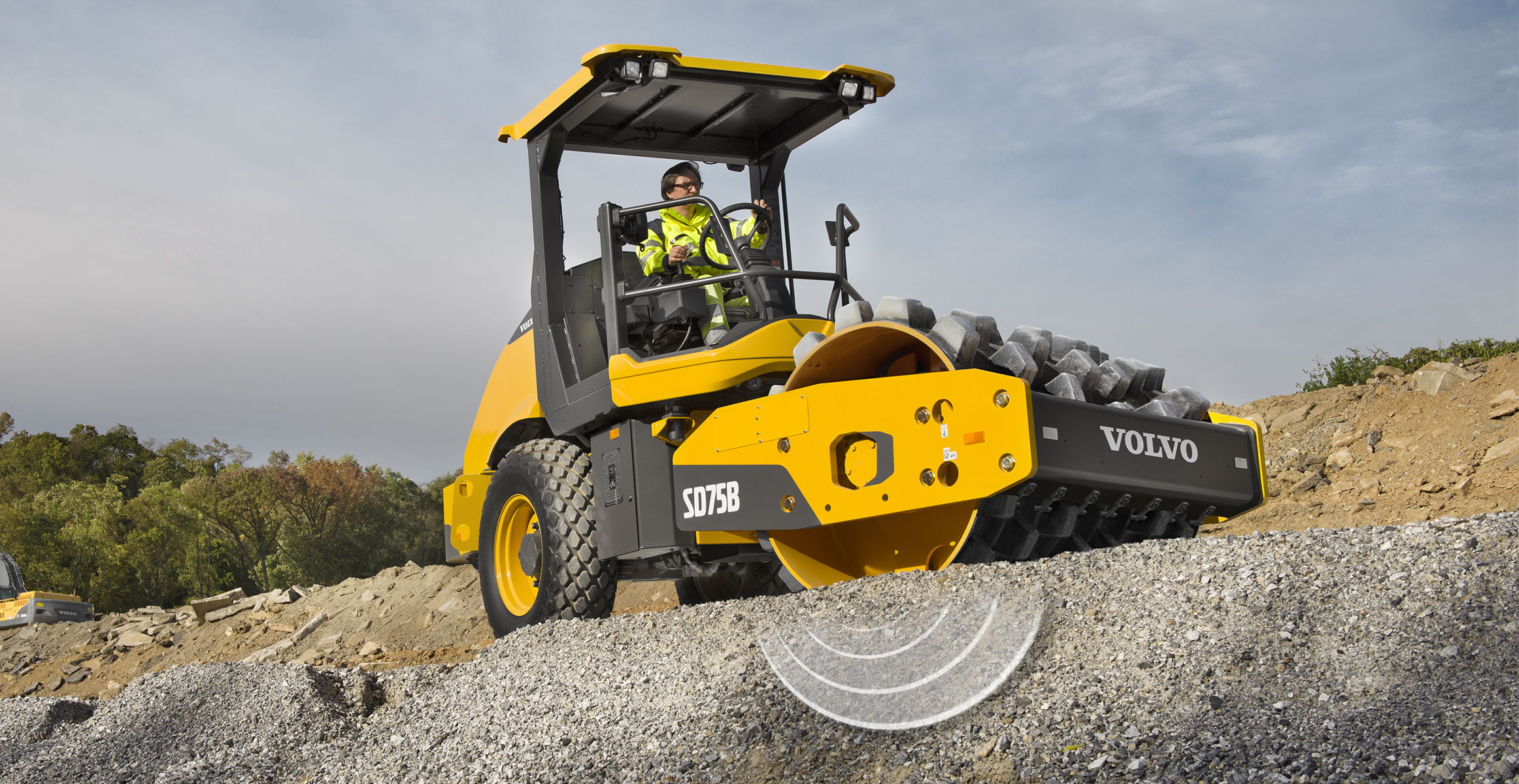

SD75B Volvo SD75B Specifications & Technical Data (2024—2025)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Volvo live at
.jpg){kind=logo}
Technical specs - SD75B Volvo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.368 t
- Transport length
- 5.044 m
- Transport width
- 1.83 m
- Transport height
- 2.993 m
- Travel speed
- 12.9 km/h
- Frequency
- 33.8 Hz
- Roller width
- 1.676 m
- Rollers Ø
- 1.354 m
- Amplitude
- 1.71 mm
- Statical line load
- 3.786 kg/cm
- Centrifugal force
- 139 kN
- Model series
- SD
- Engine manuf.
- Volvo
- Engine type
- D3.8H
- Engine power
- 55.4 kW
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: vibration, drive, turning radius outside, turning radius inside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
