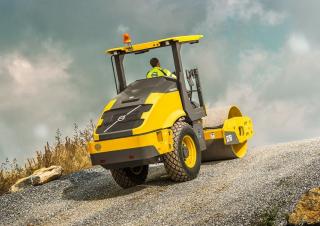

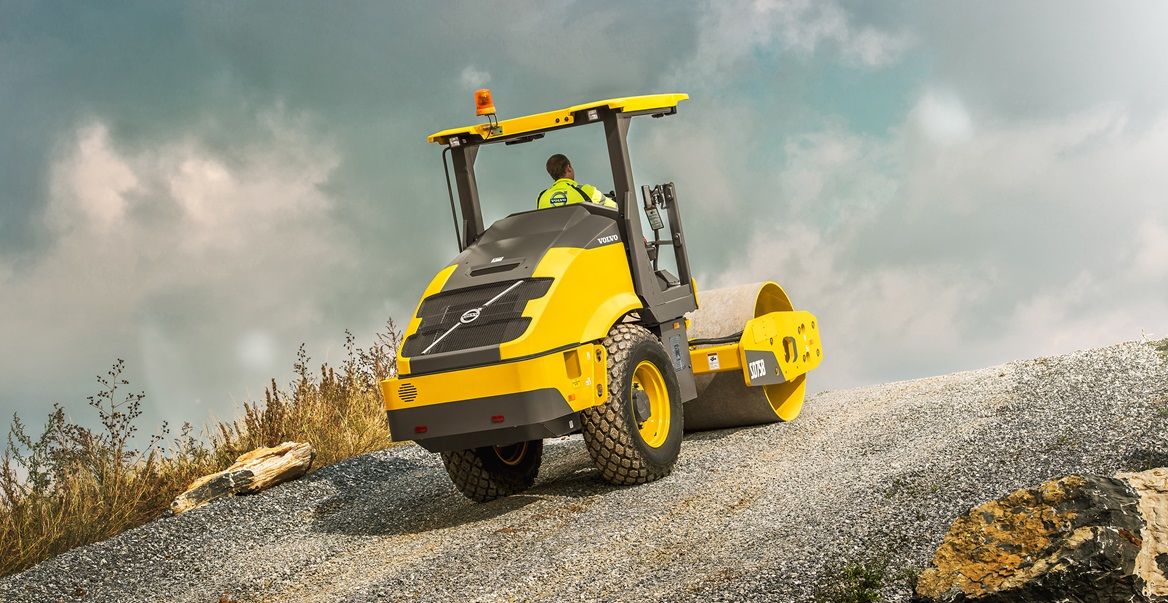

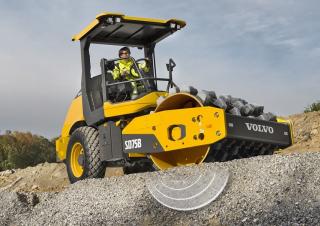

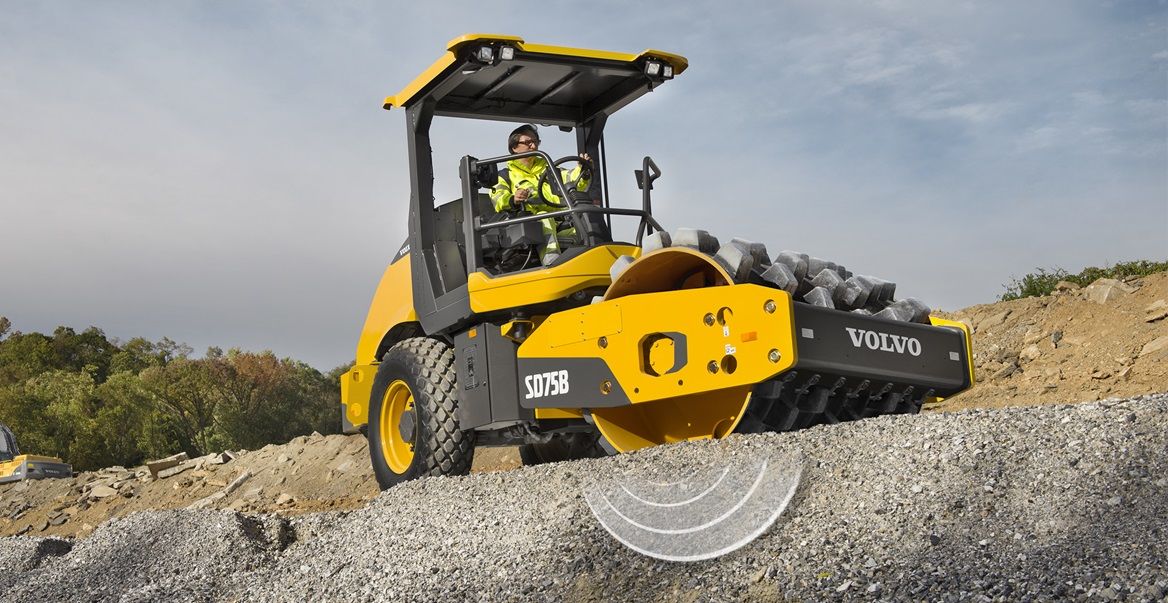

SD75B Volvo SD75B Specifications & Technical Data (2016—2024)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Volvo live at
.jpg){kind=logo}
Technical specs - SD75B Volvo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.37 t
- Transport length
- 5.04 m
- Transport width
- 1.83 m
- Transport height
- 2.99 m
- Travel speed
- 12.9 km/h
- Frequency
- 33.8 Hz
- Roller width
- 1.68 m
- Rollers Ø
- 1.215 m
- Model series
- SD
- Engine manuf.
- Volvo
- Engine type
- D3.8
- Engine power
- 75 kW
- No. of cylinders
- 4
- Emission level
- IV
More technical details, like: vibration, drive, amplitude, turning radius outside, turning radius inside, statical line load, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Volvo SD75B FAQ
How much does the Volvo SD75B weigh?
What are the transport dimensions of the Volvo SD75B single-drum roller?
What is the travel speed of the Volvo SD75B single-drum roller?
What is the vibration frequency of the Volvo SD75B's compaction system?
What are the roller specifications of the Volvo SD75B single-drum roller?
How much is a Volvo SD75B Single-drum Roller (2016u20132024) worth?
