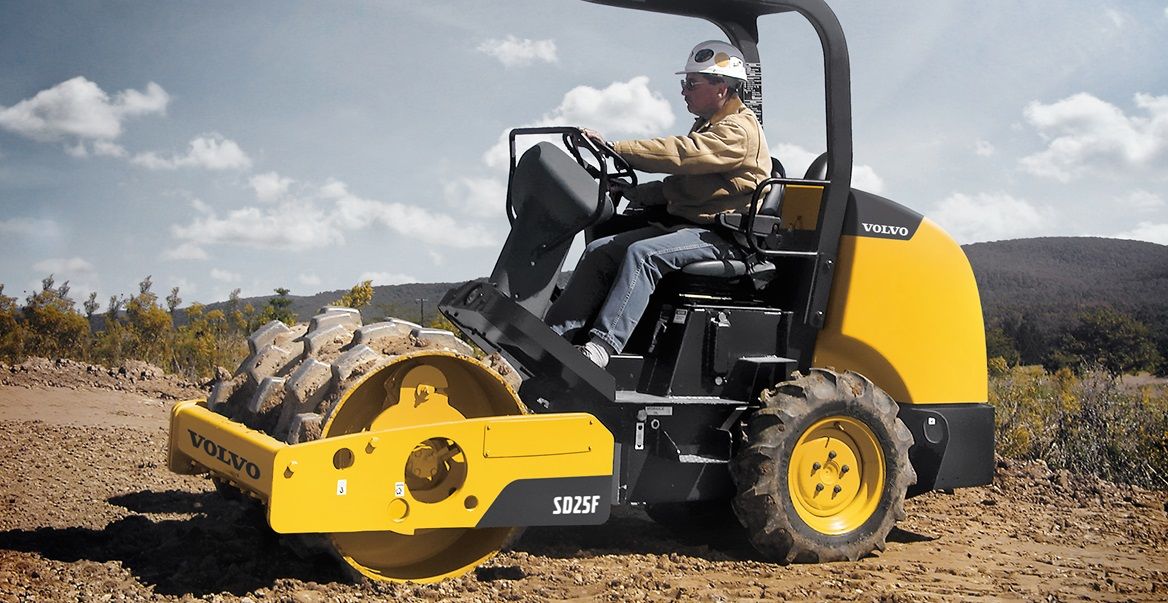

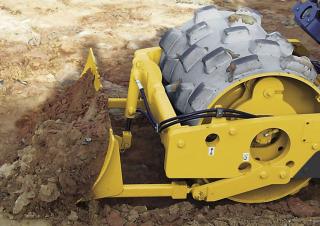

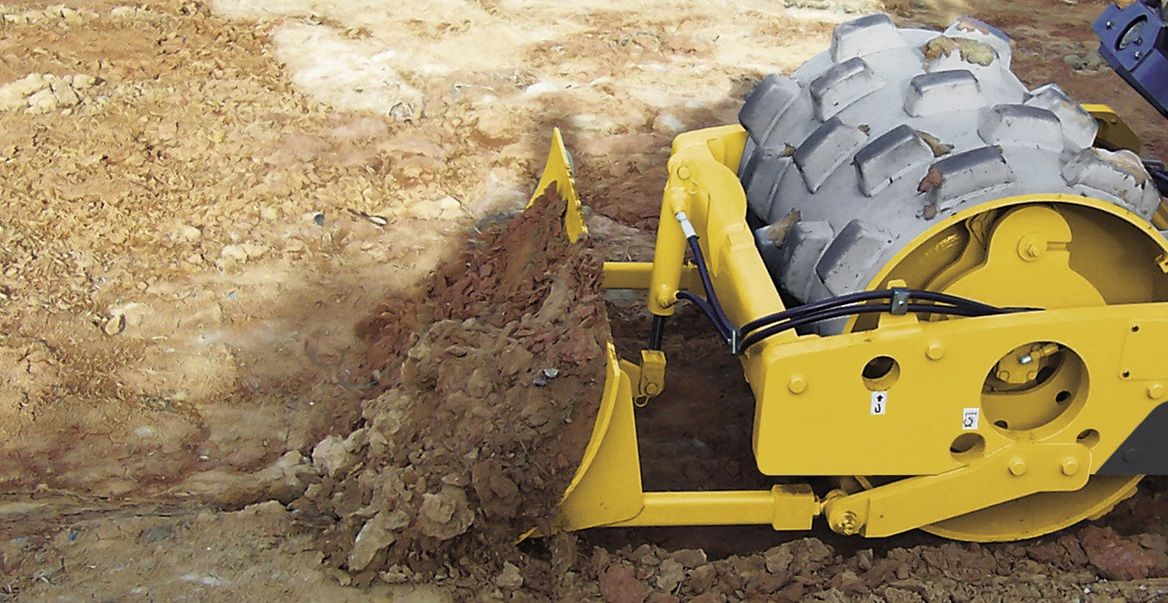

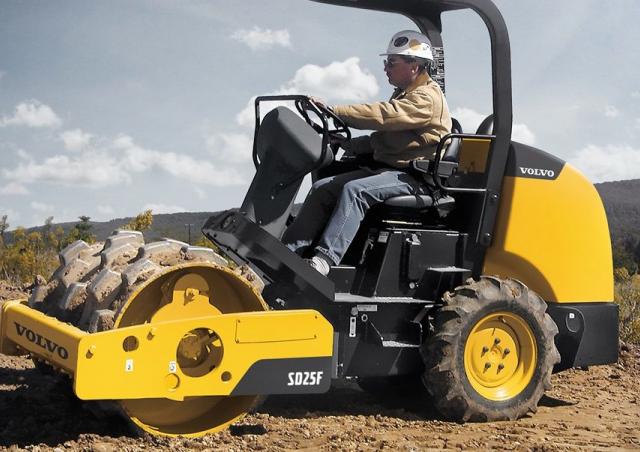

SD25 Volvo SD25 Specifications & Technical Data (2016—2019)
.jpg)
.jpg)
Visit Volvo live at
.jpg){kind=logo}
Technical specs - SD25 Volvo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.68 t
- Transport length
- 3.18 m
- Transport width
- 1.22 m
- Transport height
- 2.29 m
- Vibration
- e
- Drive
- A
- Travel speed
- 7.4 km/h
- Frequency
- 36.7 Hz
- Roller width
- 1.05 m
- Rollers Ø
- 0.91 m
- Amplitude
- 1.2 mm
- Turning radius inside
- 2.15 m
- Model series
- SD
- Engine manuf.
- Kubota
- Engine type
- V2203M
- Engine power
- 31.4 kW
- Revolutions at max torque
- 2450 rpm
- No. of cylinders
- 4
- Emission level
- Tier 4
More technical details, like: turning radius outside, statical line load, centrifugal force, dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Volvo SD25 FAQ
How much does the Volvo SD25 weigh?
What are the transport dimensions of the Volvo SD25 single-drum roller?
What is the travel speed of the Volvo SD25 single-drum roller?
What type of undercarriage drive does the Volvo SD25 have?
What is the inside turning radius of the Volvo SD25 single-drum roller?
What are the compaction capabilities of the Volvo SD25 single-drum roller?
What are the roller specifications of the Volvo SD25 single-drum roller?
How much is a Volvo SD25 Single-drum Roller (2016u20132019) worth?
