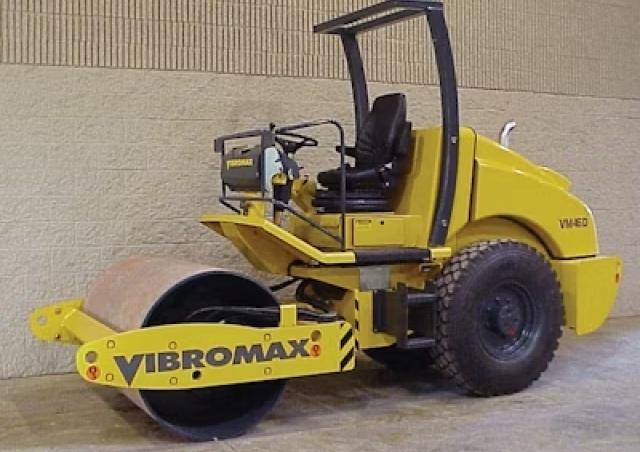

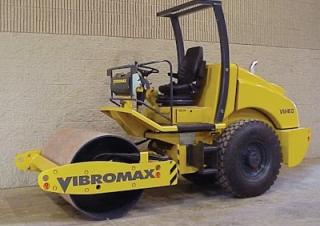

VM 46 PD Vibromax VM 46 PD Specifications & Technical Data (2003—2005)
Technical specs - VM 46 PD Vibromax
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.9 t
- Transport length
- 4.375 m
- Transport width
- 1.52 m
- Transport height
- 2.64 m
- Vibration
- e
- Drive
- E
- Travel speed
- 2.7 km/h
- Frequency
- 32 Hz
- Roller width
- 1.4 m
- Amplitude
- 1.5 mm
- Statical line load
- 15.7 kg/cm
- Engine manuf.
- Cummins
- Engine type
- B3.3-C60
- Engine power
- 45 kW
- Displacement
- 3.26 l
- Revolutions at max torque
- 2200 rpm
More technical details, like: rollers Ø, turning radius outside, turning radius inside, centrifugal force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Vibromax VM 46 PD FAQ
How much does the Vibromax VM 46 PD weigh?
What are the transport dimensions of the Vibromax VM 46 PD?
What is the travel speed of the Vibromax VM 46 PD?
What type of drive system does the Vibromax VM 46 PD have in its undercarriage?
What are the compaction capabilities of the Vibromax VM 46 PD?
What is the roller width of the Vibromax VM 46 PD?
How much is a Vibromax VM 46 PD Single-drum Roller (2003u20132005) worth?
