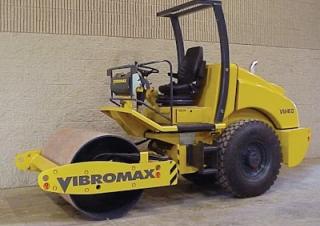

VM 46 D Vibromax VM 46 D Specifications & Technical Data (2003—2005)
Technical specs - VM 46 D Vibromax
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.6 t
- Transport length
- 4.375 m
- Transport width
- 1.52 m
- Transport height
- 2.64 m
- Vibration
- e
- Drive
- E
- Travel speed
- 2.7 km/h
- Frequency
- 32 Hz
- Roller width
- 1.4 m
- Amplitude
- 1.8 mm
- Statical line load
- 15.7 kg/cm
- Engine manuf.
- Cummins
- Engine type
- B3.3
- Engine power
- 45 kW
- Displacement
- 3.26 l
- Revolutions at max torque
- 2200 rpm
- Emission level
- T3
More technical details, like: rollers Ø, turning radius outside, turning radius inside, centrifugal force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
