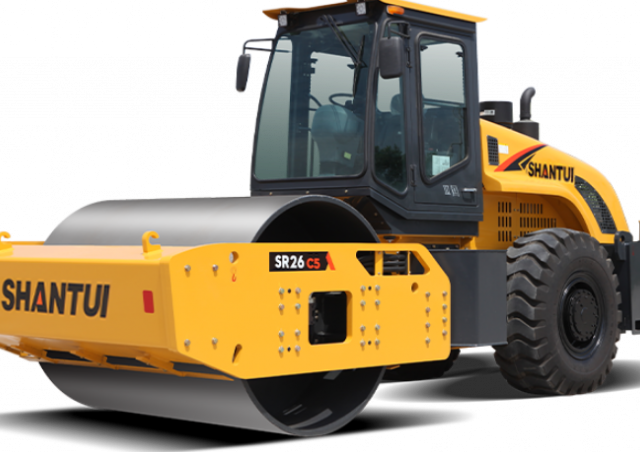

SR26-C5 Shantui SR26-C5 Specifications & Technical Data (2025—2026)

Weight: 25.6t – Transport length: 6.68m – Transport width: 2.44m – Transport height: 3.16m – Travel speed: 9.5km/h – Frequency: 35Hz

Rollers Single-drum Rollers Shantui SR26-C5

Technical specs - SR26-C5 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.6 t
Transport length
6.68 m
Transport width
2.44 m
Transport height
3.16 m
Travel speed
9.5 km/h
Frequency
35 Hz
Amplitude
2 mm
Turning radius inside
6.1 m
Centrifugal force
500 kN
Engine manuf.
Weichai
Engine type
WP6G220E330
Engine power
162 kW
Displacement
6.75 l
Max. torque
860 Nm
No. of cylinders
6
Cylinder bore x stroke
105x130 mm
Emission level
China III / Stage IIIA

More technical details, like: vibration, drive, roller width, rollers Ø, turning radius outside, statical line load, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No
